Product Description

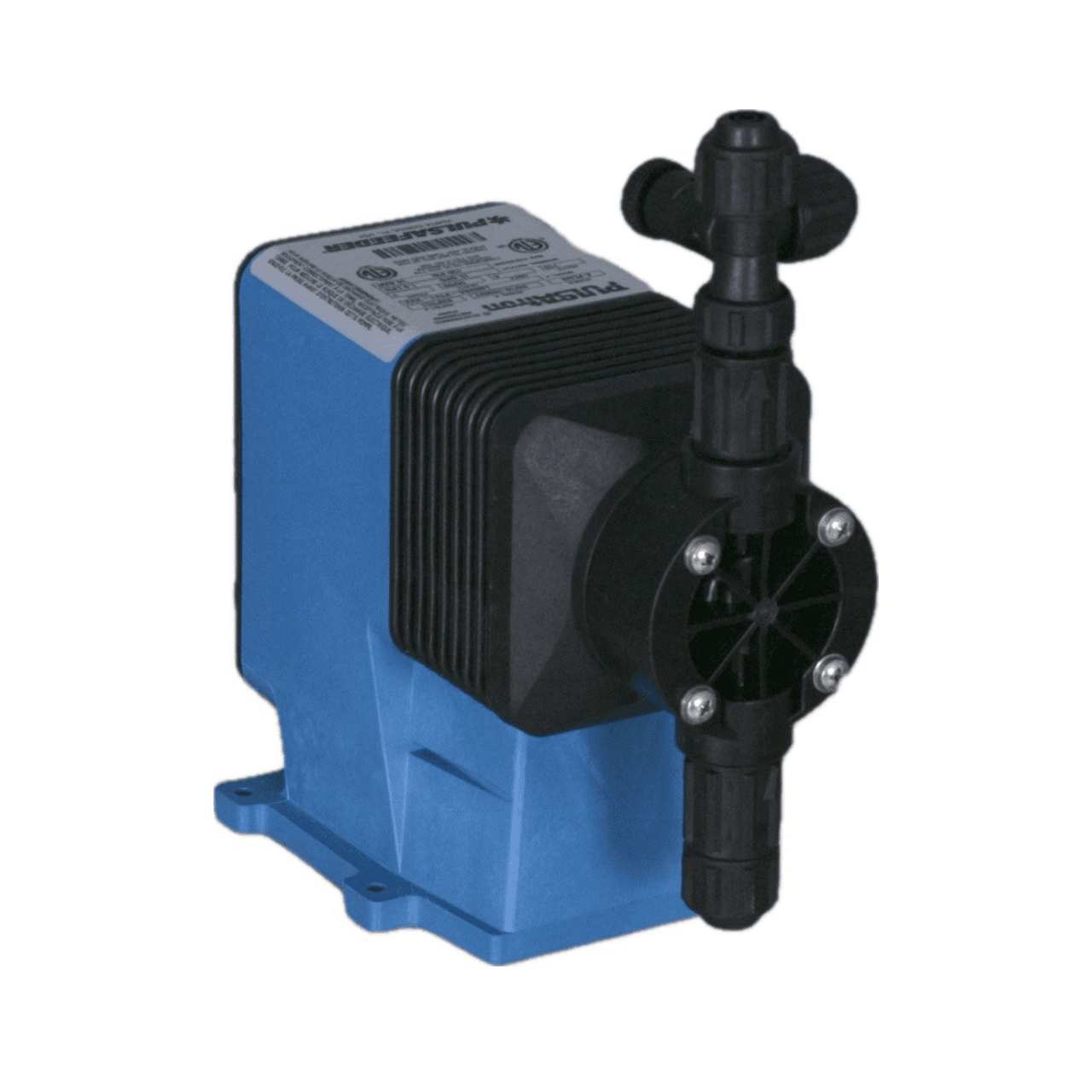

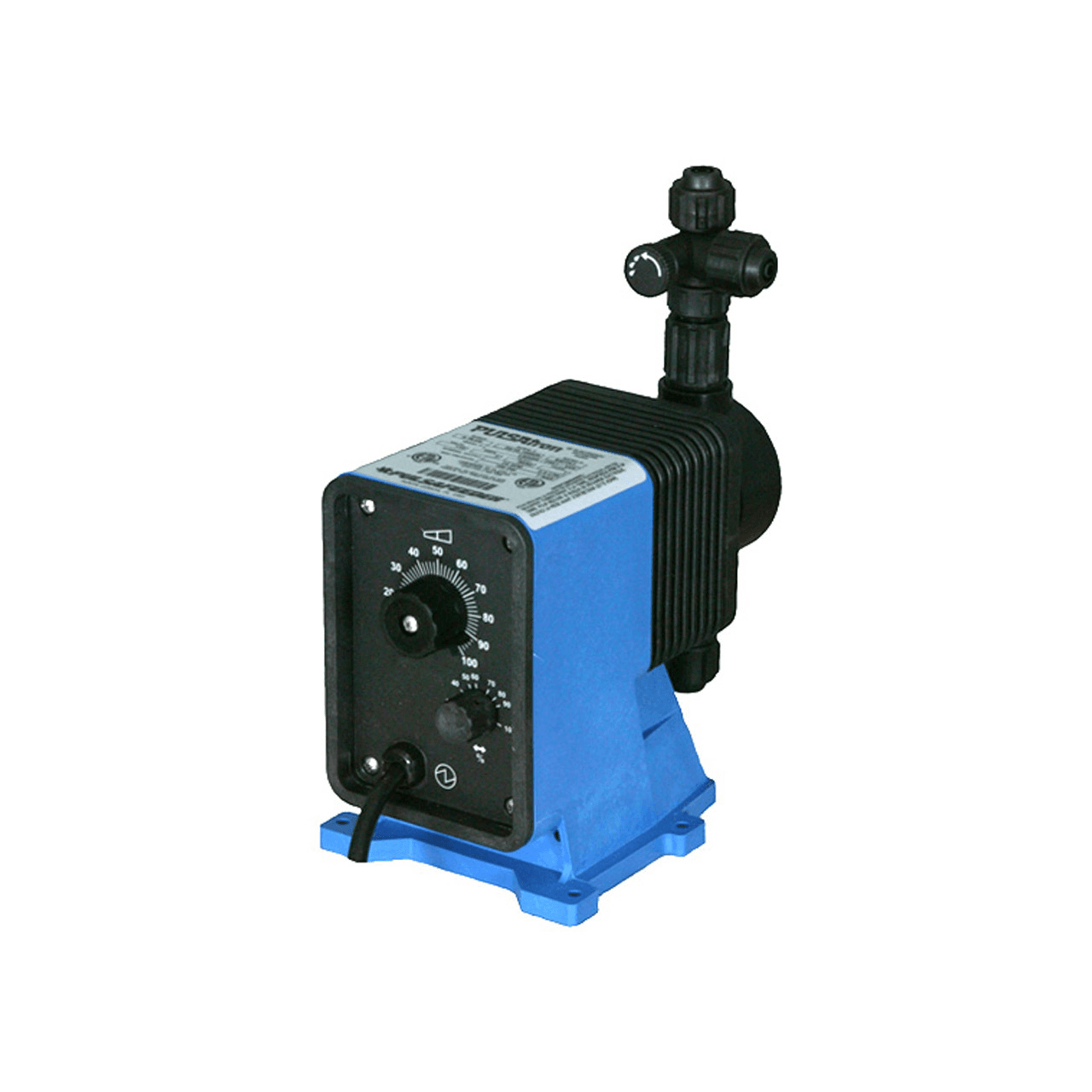

Pulsafeeder PULSAtron Series A+ Model Diaphragm Metering Pump - LB64SA-KTC9-XXX
The Pulsatron Series A Plus offers manual function controls of stroke length and stroke rate as standard, with the option to select external pace for automatic control. Other optional features include external stop function and 2000:1 turndown control. Ten distinct models are available, having pressure capabilities to 250 psig (17 bar), and flow capacities to 58 gpd (9.1 lph), with a turndown ratio of 100:1. Maximum viscosity limit of 1000 cps. Metering performance is reproducible to within +/- 3% of maximum capacity.
| Manufacturer Part Number | LB64SA-KTC9-XXX |
| Max Flow Rate | 1.25 gph / 30 gpd (4.7 lph) |
| Maximum Discharge Pressure | 100 PSI (7 BAR) |
| Voltage | 115V |
| Head Fittings | PVDF |
| Seats / O-Rings | Viton |
| Balls | CER |
| Options | Degas/Standard |
| Connection Size | .25" x .38" |
| Controls | Manual Control |
| NSF61 Approved | No |
| KOPkit Part Number | K4KTC9 |
Download PULSAtron Series A+ Tech Sheet
Download PULSAtron Series A+ IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
