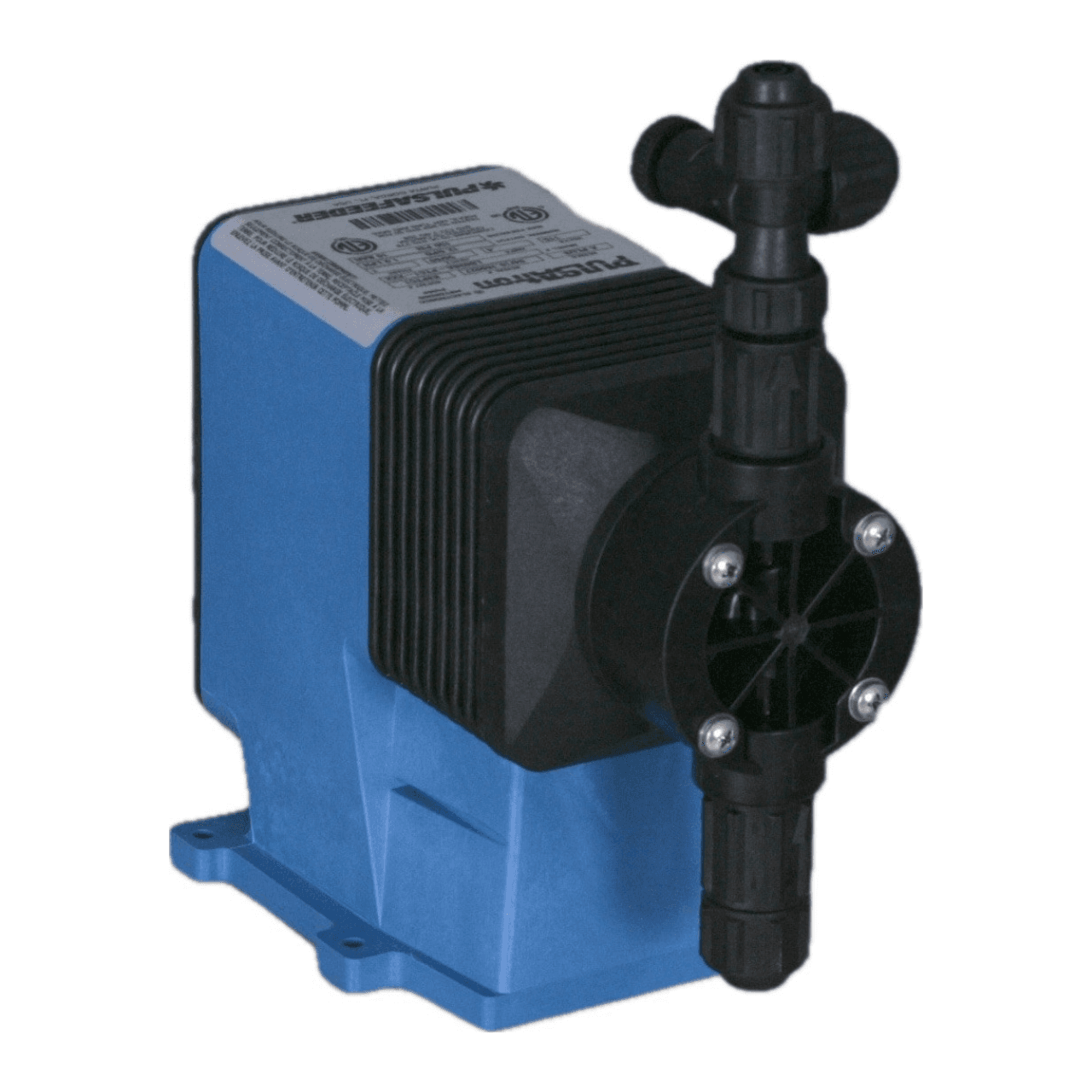

Pulsafeeder PULSAtron Series C Model Diaphragm Metering Pump - LC54EA-VVC9-XXX
The PULSAtron Series C offers manual control stroke length adjustment with a fixed stroke rate. Optional control features include external pace, a choice between momentary on/off switch for priming the pump, or a toggle on/off switch for manual override of all control functions. Four distinct models are available, having pressure capabilities to 80 psi (5.6 bar), and flow capacities to 30 gpd (4.7 lph), with a turndown ratio of 10:1. Metering performance is reproducible to within +/- 3% of maximum capacity.
| Manufacturer Part Number | LC54EA-VVC9-XXX |
| Max Flow Rate | 1.25 gph / 30 gpd (4.7 lph) |
| Maximum Discharge Pressure | 80 PSI (5.6 BAR) |
| Voltage | 115V |
| Head Fittings | PVC |
| Seats / O-Rings | Viton |
| Balls | CER |
| Options | Degas/Standard |
| Connection Size | .25" x .38" |
| Controls | Pace w/Auto/Man. |
| NSF61 Approved | Yes |
| KOPkit Part Number | K4VVC9 |
Download PULSAtron Series C Tech Sheet
Download PULSAtron Series C IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
