Product Description

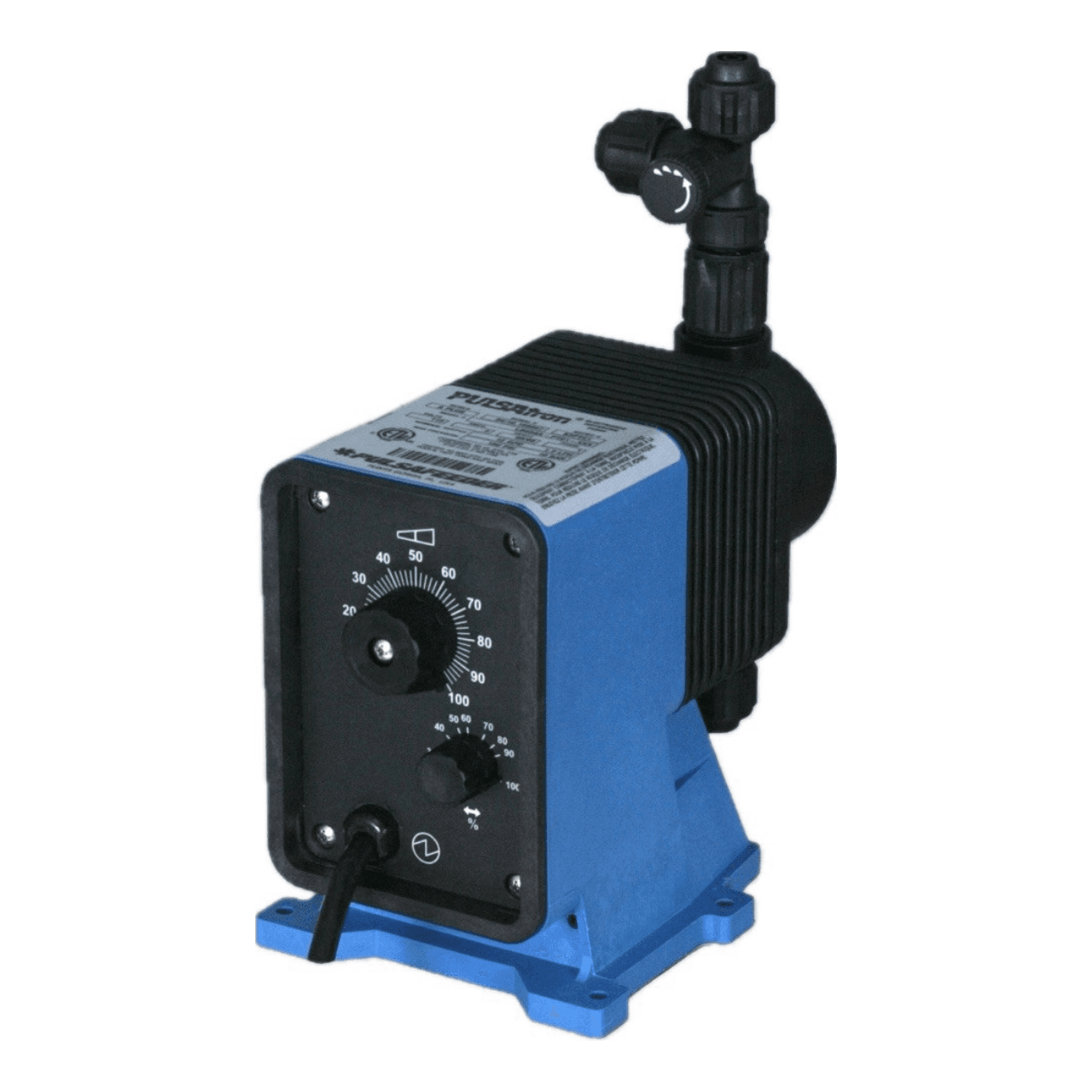

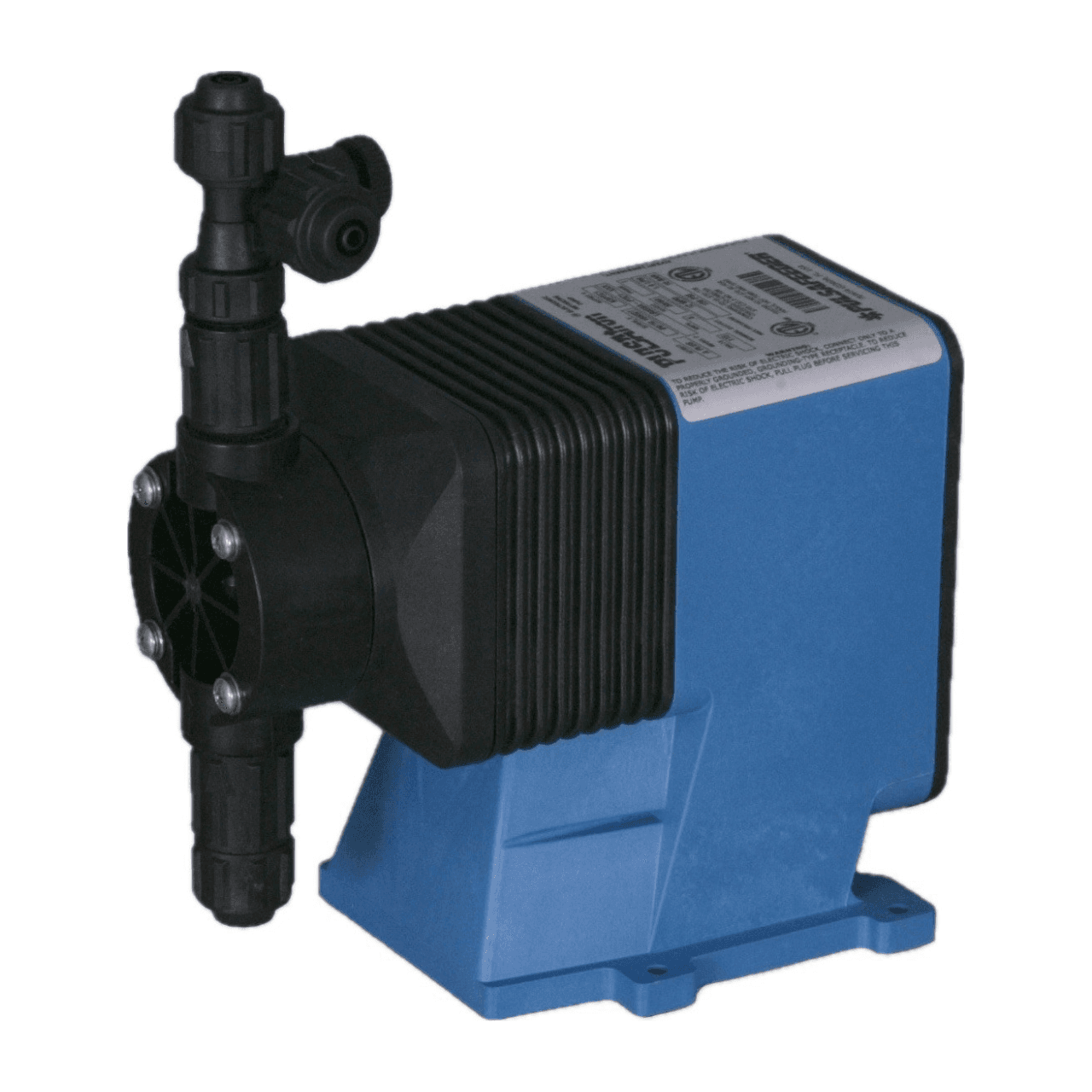

Pulsafeeder PULSAtron Series C+ Model Diaphragm Metering Pump - LD54SA-KTC2-XXX
The PULSAtron Series C Plus offers manual control over stroke length and stroke rate as standard with the option to select external pace for automatic control. The primary difference is the pressure rating. The Series C Plus offers four distinct models with pressure capabilities to 80 psi, and flow capacities to 30 gpd (4.7 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity. Our guided check valves, with their state-of-the-art seat and ball designs, provide precise seating, excellent priming and suction life characteristics. Out timing circuit is highly reliable and, by design, virtually unaffected by temperature, EMI and other electrical disturbances.
| Manufacturer Part Number | LD54SA-KTC2-XXX |
| Max Flow Rate | 1.25 gph / 30 gpd (4.7 lph) |
| Maximum Discharge Pressure | 80 PSI (5.6 BAR) |
| Voltage | 115V |
| Head Fittings | PVDF |
| Seats / O-Rings | PTFE |
| Balls | CER |
| Options | Standard |
| Connection Size | .25" FNPT |
| Controls | Manual |
| NSF61 Approved | Yes |
| KOPkit Part Number | K4KTC2 |
Download PULSAtron Series C+ Tech Sheet
Download PULSAtron Series C+ IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
