Product Description

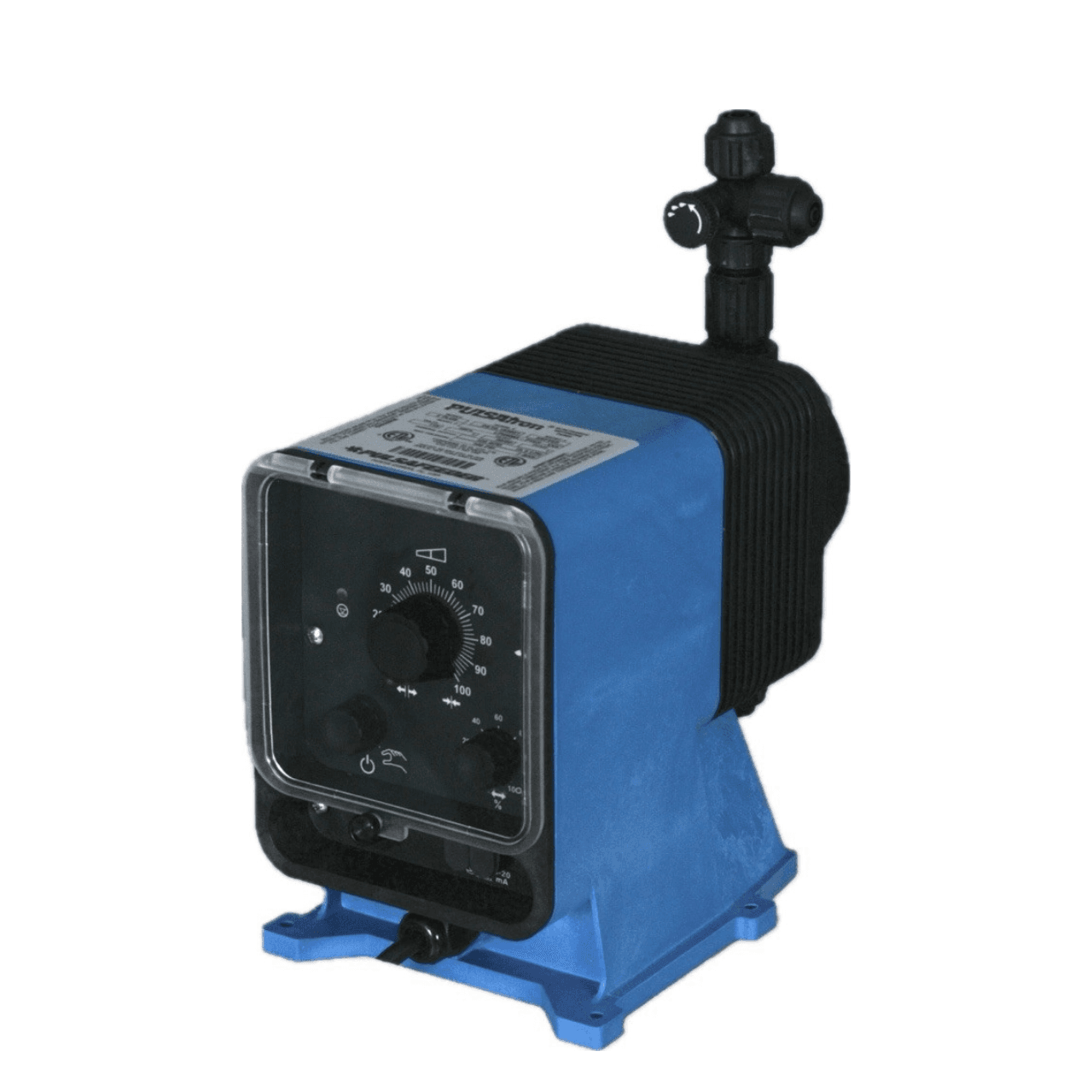

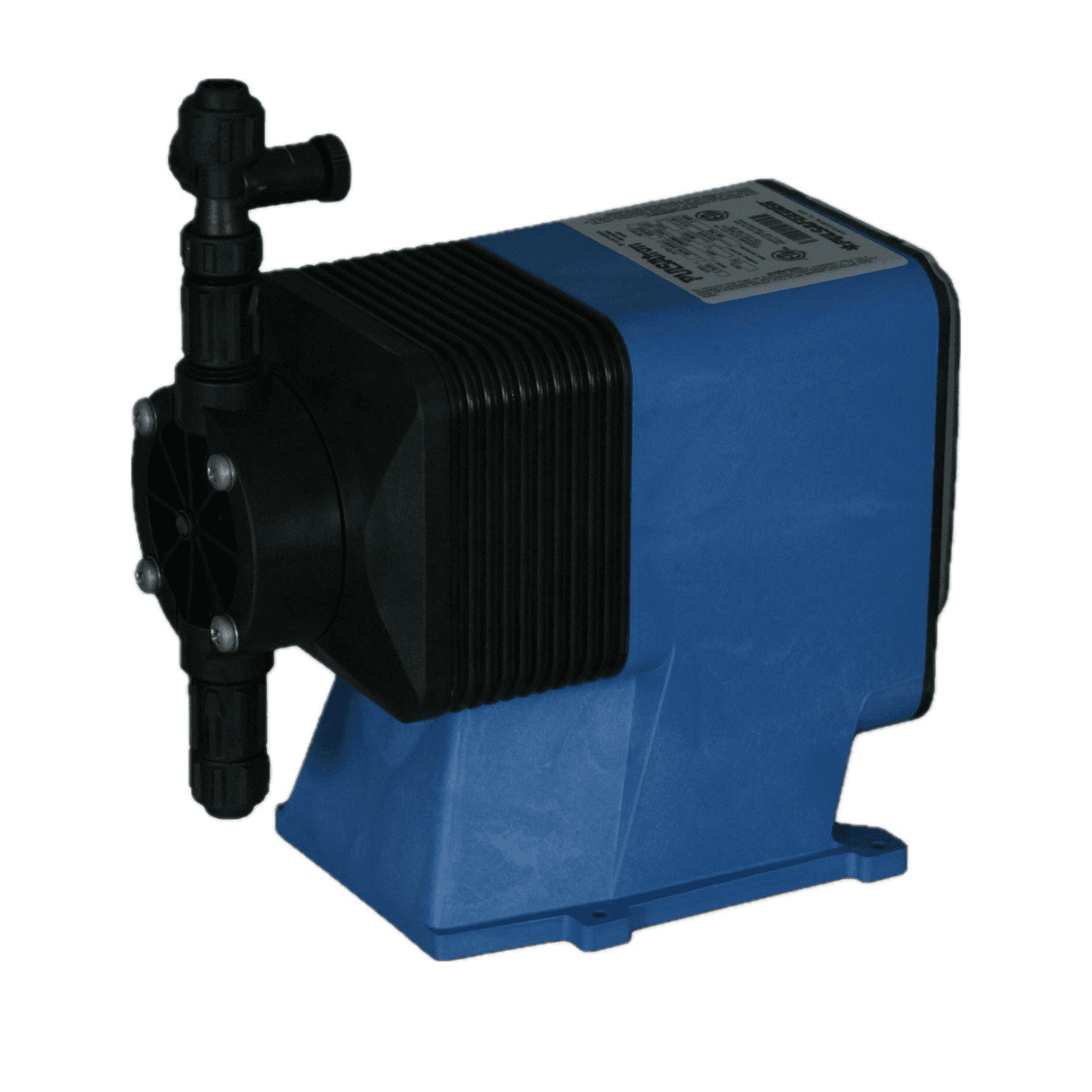

Pulsafeeder PULSAtron Series E+ Model Diaphragm Metering Pump - LPB4EA-PHC1-XXX
The Pulsation Series E Plus offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Twenty distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 600 gpd (94.6 lph) @ 30 psi (2 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity.
| Manufacturer Part Number | LPB4EA-PHC1-XXX |
| Max Flow Rate | 1.00 gph / 24 gpd (3.8 lph) |
| Max Pressure | 100 PSI (7 BAR) |
| Voltage | 115V |
| Head Fittings | GFPPL |
| Seats / O-Rings | CSPE |
| Balls | CER |
| Options | Standard |
| Connection Size | .25" x .38" |
| Controls | Ext Pace w/Stop |
| NSF61 Approved | No |
| KOPkit Part Number | K4PHC1 |
Download PULSAtron Series E+ Tech Sheet
Download PULSAtron Series E+ IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
