Product Description

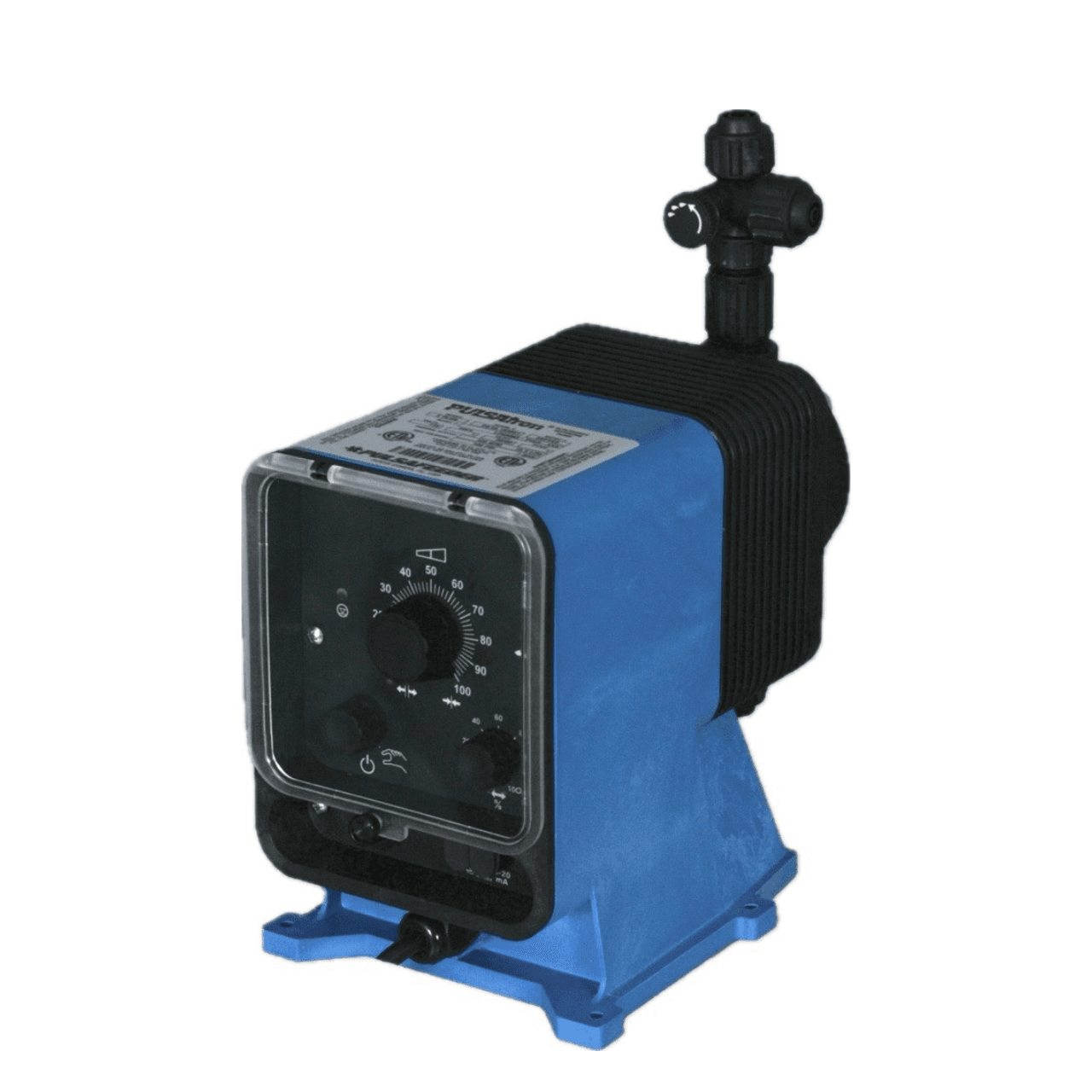

Pulsafeeder PULSAtron Series E+ Ratio Control (RC) Model Diaphragm Metering Pump - RPH6EA-PTCH-XXX
The Pulsatron Series E+ RC offers manual control over stroke length, automatic speed control based on a water meter input signal and a selectable ratio control from 0.1 Oz/ Gallon to 1.0 Oz/ Gallon. Three models are available, having pressure capabilities to 100 PSIG (7 BAR) and flow capabilities from 44 GPD (7 LPH) to 120 GPD (18.9 LPH). PULSAtron Series is designed for very precise dosing of liquids having a reproducibility within ± 2% of maximum capacity.
The RC Series is ideal for Medicator applications to accurately dose nutritional supplements to enhance the live stocks health. The PULSAtron RC Series can also be utilized to accurately dose Sodium Hypochlorite for livestock and poultry feed water and disinfection. Auto-degassing liquid end allows the pump to be self-priming. RC Series can meet the needs for other water treatment applications including well water, closed loop systems, water meter activated chemical feed applications, and many others.
| Manufacturer Part Number | RPH6EA-PTCH-XXX |
| Max Flow Rate | 5.00 gph / 120 gpd (18.9 lph) |
| Maximum Discharge Pressure | 100 PSI (7 BAR) |
| Voltage | 115V |
| Head Fittings | GFPPL |
| Seats / O-Rings | PTFE |
| Balls | CER |
| Options | Standard |
| Connection Size | .38" x .50" |
| Controls | Ratio Control |
| NSF61 Approved | No |
| KOPkit Part Number | K6PTCH |
Download PULSAtron Series E+ RC Tech Sheet
Download PULSAtron Series E+ RC IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
