Product Description

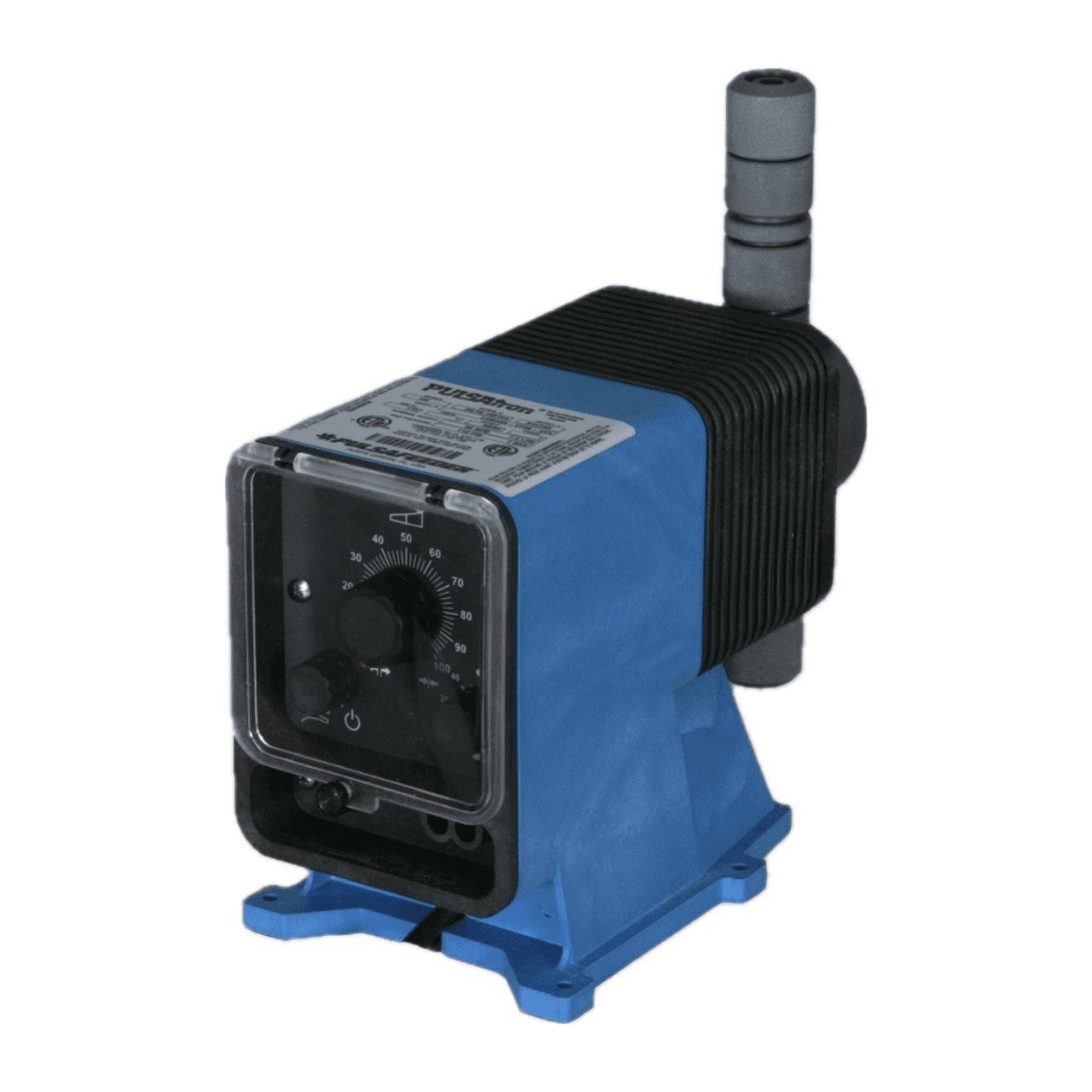

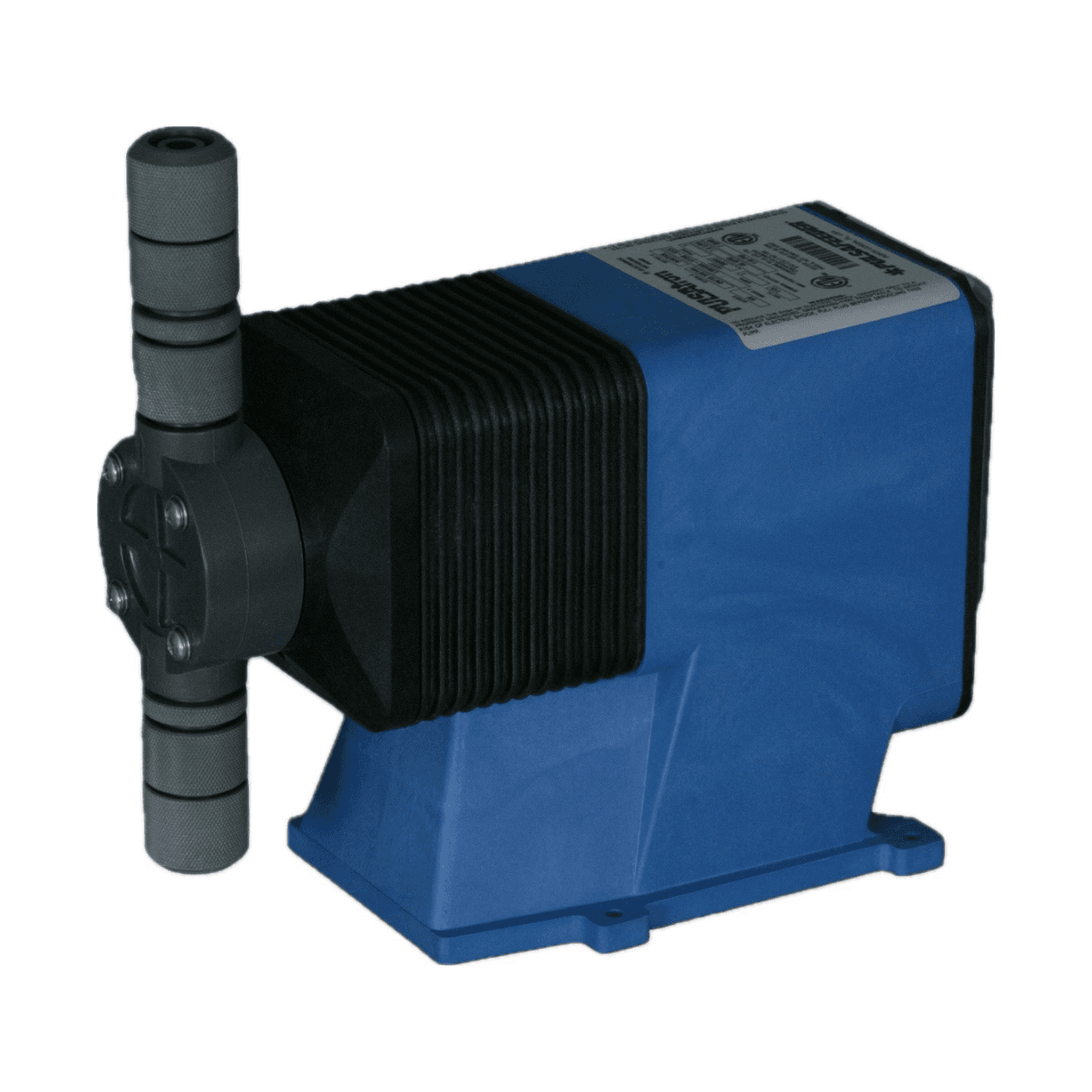

Pulsafeeder PULSAtron Series HV Model Diaphragm Metering Pump - LVG5MA-PTSK-XXX
The Pulsatron Series HV is designed for high viscosity applications for precise and accurate metering control. The Series HV offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Five distinct models are available, having pressure capabilities to 150 psi (10 bar) @ 12 gpd (1.9 lph), and flow capacities to 240 gpd (37.9 lph) @ 80 psi (5.6 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity..
| Manufacturer Part Number | LVG5MA-PTSK-XXX |
| Max Flow Rate | 4.00 gph / 96 gpd (15.1 lph) |
| Maximum Discharge Pressure | 110 PSI (7 BAR) |
| Voltage | 115V |
| Head Fittings | GFPPL |
| Seats / O-Rings | PTFE |
| Balls | 316 SS |
| Options | Standard |
| Connection Size | .50" x .75" |
| Controls | 4-20 w/ Stop |
| NSF61 Approved | No |
| KOPkit Part Number | K5PTSK |
Download PULSAtron Series HV Tech Sheet
Download PULSAtron Series HV IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
