Product Description
Truflo API Process Pumps
Truflo API process pumps are manufactured in accordance with API 610 11th Ed. and API 685 2nd Ed. standards. API process pumps include a range of models including:
- Double Suction Split Case Pumps – API 610 11th Ed. (BB1)
- Ring-Sectional Multistage Pumps – API 610 11th Ed. (BB4)
- Horizontal Double Casing Multistage Pumps – API 610 11th Ed. (BB5)
- Single-Stage Double Suction Pumps – API 610 11th Ed. (BB2)
- Two-Stage Double Suction Pumps – API 610 11th Ed. (BB2)
- Vertical In-Line Single-Stage Pumps – API 610 11th Ed. (OH3)
- Magnetic Drive Process Pumps – API 685 2nd Ed. (OH2)
- Single-Stage Process Pumps – API 610 11th Ed. (OH2)
- Multi-Stage Turbine Pumps – API 610 11th Ed. (BB3)
- Two-Stage Single Suction Pumps – API 610 11th Ed. (BB2)
- Vertical Double Casing Pumps – API 610 11th Ed. (VS6)
- Vertical Single Casing Pumps – API 610 11th Ed. (VS1)
- Vertical Sump Pump s– API 610 11th Ed. (VS4)
Truflo API Pump Series Specifications
DSV Series

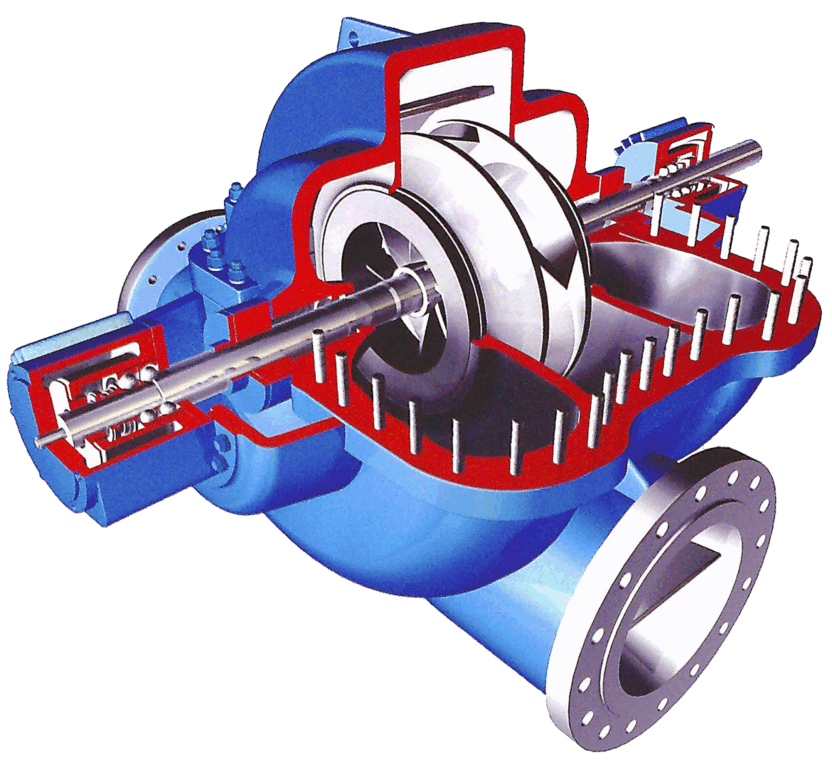

- BB1 split-case double suction pump, API 610, 11th Edition
- Flows to 57,000 GPM, head to 690 feet
- Temp to 356ºF
- Replace-able wear rings, wide range of mechanical seal arrangements
- Available material: DCI, WCB, CF8M, CD4M, CN7M, Hastelloy B&C (S1, S4, S5, S6, S8, C6, A8, D1, D2)
RSMP Series
- BB4 ring section multistage, API 610, 11th Edition
- Flows to 2,200 GPM, head to 7,870 feet
- to 698ºF
RSMP-B Series
- BB5 barrel pump, API 610, 11th Edition
- Multistage, flows to 4,579 GPM, head to 9,843 feet
- Temp to 797ºF
- Available material: WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, Standard Labyrinth (S1, S4, S5, S6, S8, C6, A8, D1, D2)
TDP Series
- VS1 vertical turbine API 610, 11th Edition
- Flows to 61,600 GPM, head to 920 feet
- to 392ºF
- Available material: WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, CA6NM, CF3M (S1, S4, S5, S6, S8, C6, A8, D1, D2)
TDSP Series
- BB2 radially-split top suction, top discharge double suction 2 stage API 610, 11th Edition
- Flows to 10,500 GPM, head to 1,300 feet
- to 750ºF
- Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2
TLP Series
- Vertical In-Line Single-Stage Pump – API 610 11th Ed. (OH3)
- Capacity: 660gpm (150m³/h)
- Head: 390ft (120m)
- Temperature: 350°F (180°C)
- Pressure: 230psi (16kg/cm³)
- Power: 200HP (150kW)
TMP Series
- OH2, API 685 magnetic driven pump
- Flows to 2,640 GPM, head to 1,120 feet
- to 527ºF
- Sm2Col7 magnets, dual containment can system fully enclosed
- Available material: DCI, WCB, CF8, CF8M, CD4M, CN7M, CA6NM, CF8M
TSP Series
- OH2 radially split, API 610, 11th Edition
- 33 available sizes
- Flows to 8,365 GPM, head to 1,120 feet
- Temp to 698ºF
- Available material: WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, Standard Labyrinth Oil Seal & Magnetic Drain Plug (S1, S4, S5, S6, S8, C6, A8, D1, D2)
TSMP Series
- BB3 axially split multi- stage pump, API 610 11th Edition
- Flows to 4,400 GPM, head to 3,930 feet
- to 400ºF
- Available material: WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, and CA6NM (S1, S4, S5, S6, S8, C6, A8, D1, D2)
TSTP Series
- BB2 radially-split top suction, top discharge 2 stage, single suction 1st stage
- API 610, 11th Edition
- Flows to 10,500 GPM, head to 1,300 feet
- to 750ºF
- Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2
TVCP Series
- VS6 vertical can pump API 610, 11th Edition
- Single or multistage
- Flows to 7,900 GPM, head to 3,930 feet
- Temp to 750ºF
- Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2
TVP Series
- VS1 vertical turbine API 610, 11th Edition
- Flows to 61,600 GPM, head to 920 feet
- to 392ºF
- Available material: DCI, WCB, CF8, CF8M, CF3, CN7M, CD4M (S1, S4, S5, S6, S8, C6, A8, D1, D2)
TVSP Series
- VS4 vertical sump pump, API 610, 11th Edition
- Flows to 1,800 GPM, head to 920 feet
- Temp to 784ºF
- Available material: S1, S4, S5, S6, C6, A8, D1, D2
