Product Description

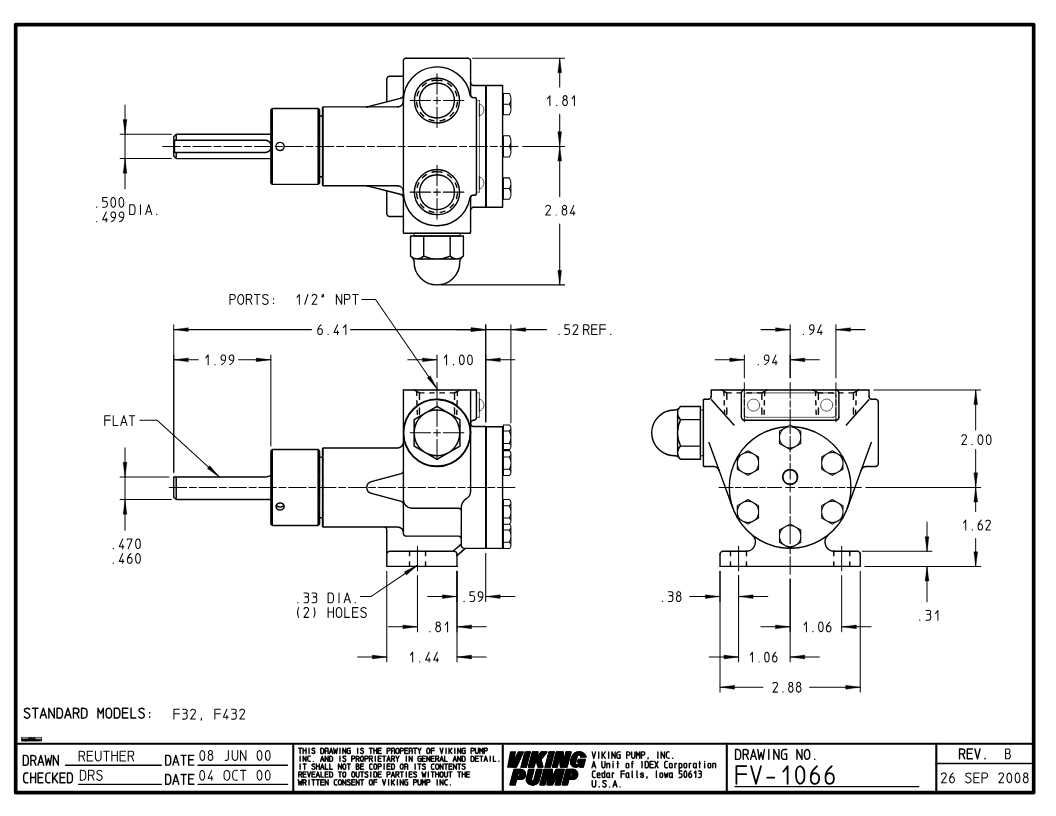

Viking Pump - Model F432X - UL Listed Cast Iron Gear Pump - 4-0630-3134-501
Pump Construction and Capabilities:
| Port Size | 0.5" |
| Port Type | NPT |
| Port Orientation | Top |
| External Material | Cast Iron |
| Seal Type | Mechanical Seal |
| Seal Elastomer | Buna-N |
| Min Flow Rate (GPM) | 0.0 |
| Max Flow Rate (GPM) | 1.5 |
| Max Pressure (PSI) | 250.0 |
| Max Temperature (F) | 225.0 |
| Relief Valve | Relief Valve |
| Gear/Idler Material | Steel / Hardened Steel |
| Shaft Material | Steel |
| Idler Pin | Nitralloy |
| Idler Bushing | None |
| Shaft Bushing | Carbon Graphite |
Downloads:
Viking Pump 32 Series Catalog Section
Other Details
About Series 32 Viking Motor Speed Pumps
The Viking 32 Series is the most compact gear pump series available to fit tight space constraints. The motor speed pump features high speed operation for the most economical pump option for thin to moderate viscosity applications. Vertical mounting options are available to further reduce footprint. The 32 Series internal gear pump is the ideal solution for light, medium, and intermittent service handling of a variety of liquids. It can handle up to 450 GPM.
Features include:
- Relief valve on casing or head
- Steam jacketed head
- Upright, opposite & right angle ports
- Packing seal
Typical applications include:
- Refined Fuels
- Lube Oils
- Rotating Equipment
- Lubrication
- Mobile Pump Carts
- Glycols
- Pipeline Sampling
- Isocyanates
| Model | Standard Port Size | Nominal Pump Rating GPM | Nominal Pump Rating m³/h | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
|---|---|---|---|---|---|---|
| C32 | 0.25 | 0.5 | 0.11 | 1800 | 250 | 17 |
| F32 | 0.5 | 1.5 | 0.34 | 1800 | 250 | 17 |
| FH32 | 0.5 | 3 | 0.68 | 1800 | 250 | 17 |
| G32 | 1 | 5 | 1.1 | 1200 | 100 | 7 |
| H32 | 1 | 10 | 2.3 | 1200 | 100 | 7 |
| HL32 | 1.5 | 20 | 4.5 | 1200 | 100 | 7 |
| K32 | 1.5 | 35 | 8 | 420 | 100 | 7 |
| KK32 | 2 | 50 | 11 | 420 | 100 | 7 |
| L32 | 2 | 90 | 20 | 420 | 100 | 7 |
| LQ32 | 2.5 | 90 | 20 | 420 | 100 | 7 |
| LL32 | 3 | 140 | 32 | 520 | 100 | 7 |
| Q32 | 3 | 200 | 45 | 350 | 75 | 5 |
| M32 | 4 | 280 | 63 | 280 | 75 | 5 |
| N32 | 5 | 450 | 102 | 280 | 75 | 5 |
C thru HL sizes available UL 343 listed for fuel oil applications
Product Videos
Custom Field
-> We can only ship Viking Pumps to CO, Eastern WY, and Western ND, SD & NE.
Series Series 32
