Product Description

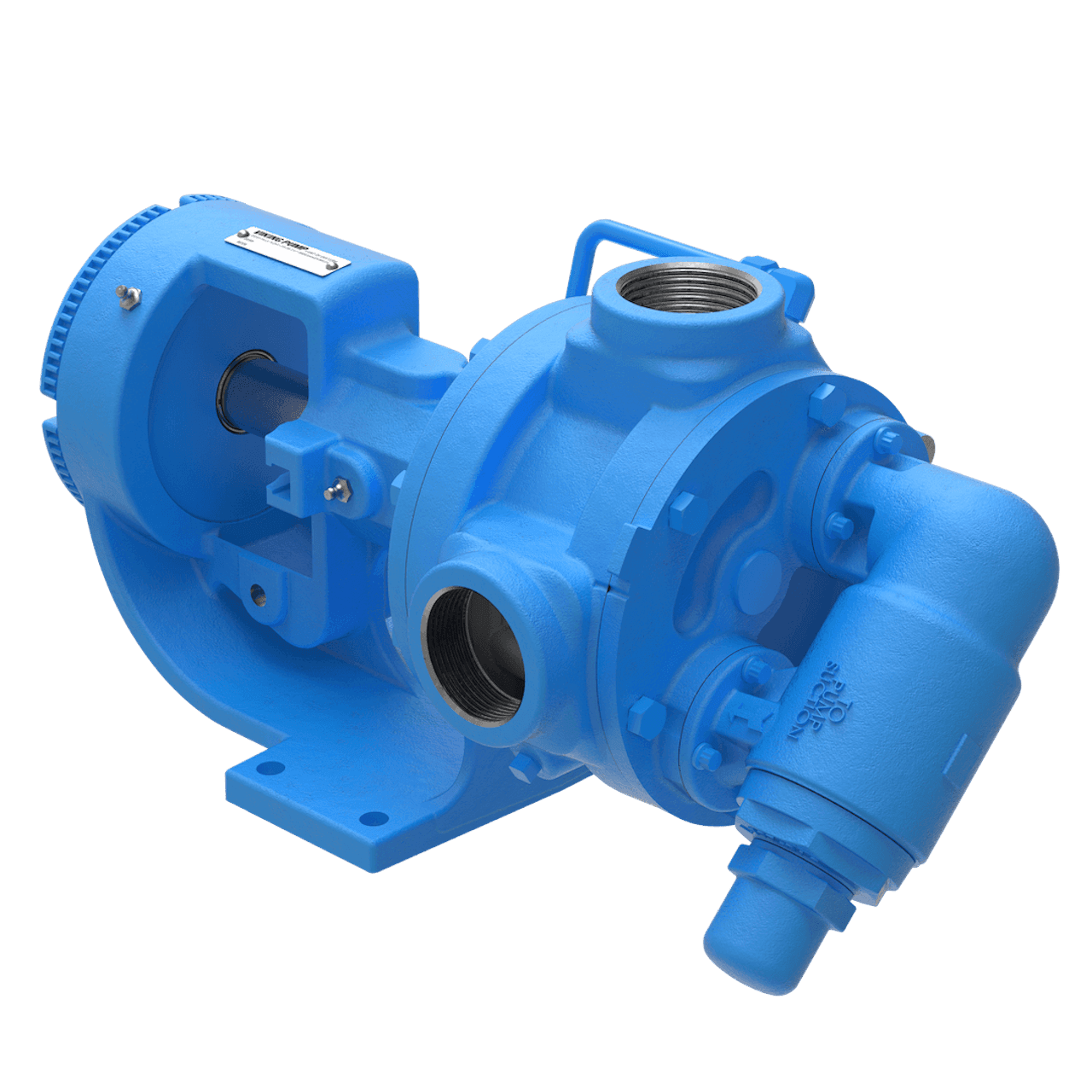

Viking Pump - Model HL4624B - Cast Iron Gear Pump - 4-1412-56GK-501
Pump Construction and Capabilities:
| Port Size | 1.5" |
| Port Type | NPT |
| Port Orientation | 90 Degree |
| External Material | Cast Iron |
| Seal Type | Mechanical Seal |
| Seal Elastomer | FKM |
| Min Flow Rate (GPM) | 0.0 |
| Max Flow Rate (GPM) | 10.0 |
| Max Pressure (PSI) | 150.0 |
| Max Temperature (F) | 225.0 |
| Relief Valve | Relief Valve |
| Gear/Idler Material | Iron / P.M. |
| Shaft Material | Steel |
| Idler Pin | Tungsten Carbide |
| Idler Bushing | Tungsten Carbide |
| Shaft Bushing | Bronze |
Downloads:
Viking Pump 4624B Series Catalog Section
Other Details

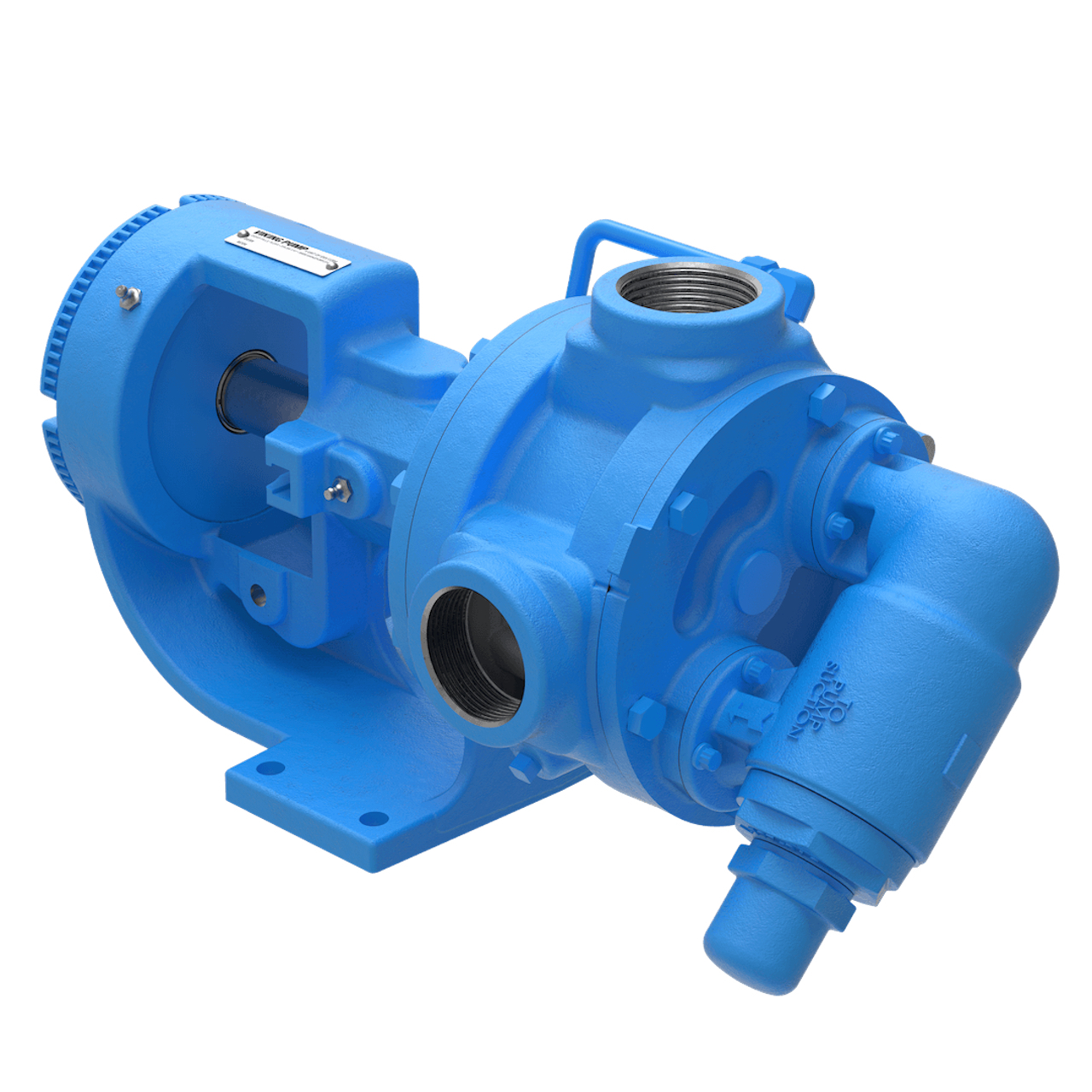

About Model H4624B Series
The Viking 4624B Series™ internal gear pump is designed for handling abrasive and shear-sensitive fluids such as inks, resins, starch, and industrial adhesives. Hardened components in key wear areas help extend pump life in applications where solids or abrasive materials may be present.
The pump provides flow rates from 0.75 to 182 GPM (0.17 to 41 m³/h).
Features include:
- Hardened Wear Components
- Mechanical Seal with Flush Option
- Grease-Lubricated Bracket Bushing
Typical applications include:
- Starch processing
- Starch-based adhesives
- Adhesives and bonding compounds
- Industrial inks and resins
- Wax processing
| Model | Standard Port Size | Nominal Pump Rating GPM | Nominal Pump Rating m³/h | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
|---|---|---|---|---|---|---|
| F4624B | 0.5 | 0.75 | 0.17 | 870 | 100 | 7 |
| FH4624B | 0.5 | 1.5 | 0.34 | 870 | 100 | 7 |
| H4624B | 1.5 | 5 | 1.1 | 640 | 150 | 10 |
| HL4624B | 1.5 | 10 | 2.3 | 640 | 150 | 10 |
| K4624B | 2 | 25 | 5.6 | 280 | 150 | 10 |
| KK4624B | 2 | 35 | 7.9 | 280 | 150 | 10 |
| L4624B | 2 | 50 | 11.3 | 230 | 150 | 10 |
| LQ4624B | 2.5 | 50 | 11.3 | 230 | 150 | 10 |
| LL4624B | 3 | 65 | 14.8 | 230 | 150 | 10 |
| LS4624B | 3 | 75 | 16 | 230 | 150 | 10 |
| Q4624B | 3 | 110 | 25 | 190 | 125 | 9 |
| QS4624B | 4 | 182 | 41 | 190 | 125 | 9 |
