Product Description
Sanitary Agitators & Mixers
For industries with Sanitary Requirements, we can offer equipment with an all stainless steel construction and features designed to meet ASME BPE Standards and other industry standards. Our mixers can be used in a variety of sanitary mixing applications and extend into other industries outside of Pharmaceutical and Biotechnology. We have clarity around the key requirements for success; Cleanability, Containment, Contamination Resistance and Traceability.
Sanitary Agitators & Mixers are available in a wide range of mixing configurations utilizing a unique modular assembly design.
We recognize the importance of material traceability and can provide a comprehensive QAD package with the mixer. We can include: MTRs, FDA Conformity, CE Conformity, PMI, Quality Plan, Welder Qualifications and Surface Finish Certificates.
For applications where clean-in-place (CIP) or sterilize-in-place (SIP) we design the features of the equipment to ensure your cleanliness requirements can be met. Engineered to meet your needs, we can offer:
- Crevice free design to allow clean-in-place (CIP) services
- Highly polished surfaces typically 0.5μm Ra (20μin Ra) or better - and electropolishing where needed
- Hygienic shaft couplings
- Hygienic impeller connections and blade joints
- Self-draining surfaces
- Hygienic, (GRAS) mechanical seal designs with FDA compliant materials
- Material Certification and Quality Assurance Documentation
- Accurate fixed or variable speed drives with shaft speed monitoring
Sanitary Mixer Product Lines
Magnetic coupling, Seal-less Mixer
- Seal –less technology: Magnetically coupled impeller. No shaft entering vessel.
- Food grade Ceramic product lubricated bearings, other bearing types available
- Electro polished 316SS Hyperflo impeller (0.2μm Ra) for easy cleaning
- Tri-clover flange mount
- Flexible power and speed ranges and globally compliant.
- OSHA & CE compliant, Meets ASME BPE
Lightnin GP2 & Lightnin lB2 - Bench top and Small industrial Mixers
- Brushless DC motor which is maintenance free and has overload protection
- Sealed Keypad that is easy to use, intuitive and water tight
- Through shaft design making impeller adjustment easy
- Safety Approved, Tested to IEC 61010-1-04 2nd edition and -2-0-0451
- IP42 Environmental Rating
Stainless Steel H-Series - Small and lightweight Stainless Steel Mixer
- Meets EC1935 Standards for food machinery, OSHA & CE compliant, ATEX (2G IIc T4)
- Stainless Steel housings with Clamp Mount, Beam Mount, Tri-clover flange mount
- Stainless Steel Air motor
Nettco S-Series - all Stainless Steel configurable Mixers
- Meets 3A and EC1935 Standards, OSHA & CE compliant
- Clamp Mount, Beam Mount, Plate Mount, ANSI or DIN or Tri-clover flange mount
- Stainless Steel IEC TEFC, XP Inverter ready or Air Motors
- Cast Stainless Steel housings
- Single Mechanical Seal w/ UPS Class VI elastomers, Lip Seal available

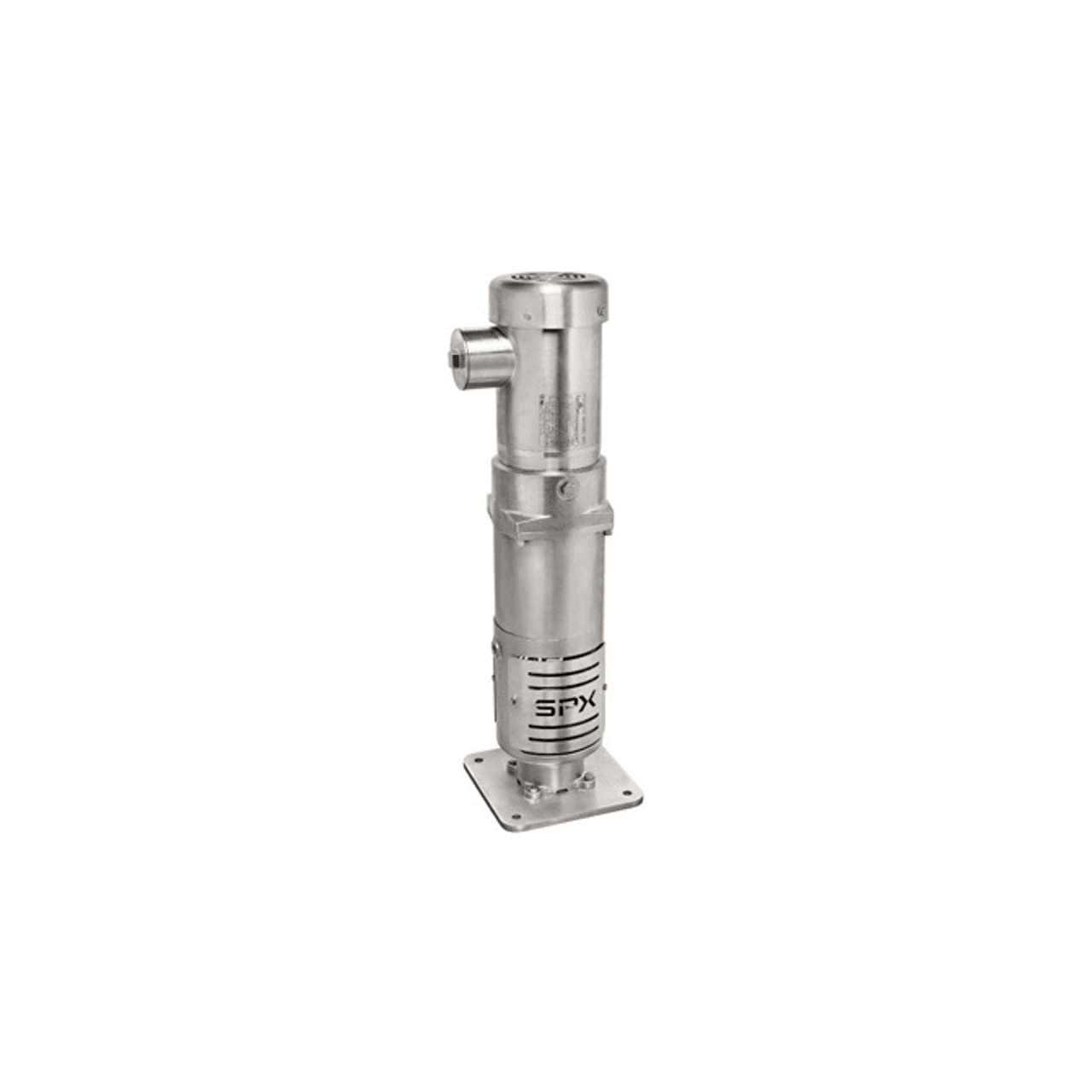

SSi / SSO - all Stainless Steel configurable Mixers
- Meets ASME BPE, OSHA & CE
- Beam Mount, Plate Mount, ANSI or DIN or Tri-clover flange mount
- Stainless Steel IEC or NEMA motors TEFC, XP or Air Motors. ATEX motors Epoxy painted
- Stainless Steel Polished Cast housings
- Food grade Single Mechanical Seal w/ UPS Class VI elastomers, Lip Seal available

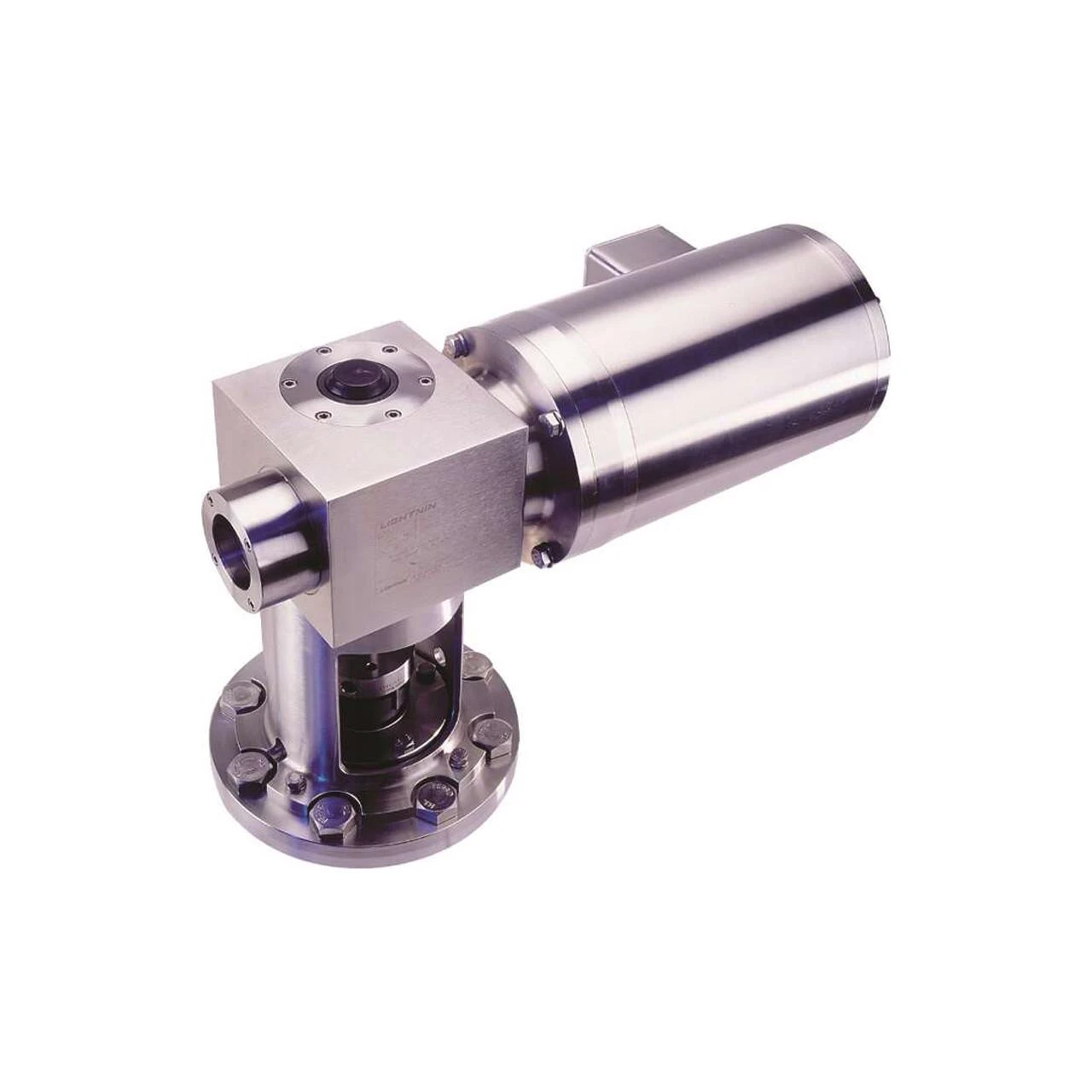

Featured Product: SanStar SR Right Angle Mixers
SR - low head room Stainless Steel Mixer
- Meets ASME BPE, OSHA & CE compliant
- ANSI, DIN or Tri-clover flanges
- IEC or NEMA motors TEFC 0.37kw (1⁄2HP) 50/60Hz. Stainless Steel available
- Stainless Steel Gearbox drive
- Hygienic in tank screwed couplings available
- Food grade Single Mechanical Seal w/ UPS Class VI elastomers
Designed for use in aseptic environments, the Lightnin SR Sanitary Right-Angle Mixers offer a proven track record of superior, dependable performance.
Lightnin SR Sanitary Right-Angle Mixers are designed for biological, pharmaceutical, cosmetic, and food processing applications on tanks ranging from 100 to 20,000 liters (25 gal. to 5200 gal.).
- Used in the most stringent cGMP (Good Manufacturing Practices) facilities
- Designed for media suspension and storage, buffer solution makedown, plasma extraction, fermentation (including bacteria and cell culture), and general media processing
- Aseptic dry running seal can be supplied with sterilizable sanitary gland
- Designed for CIP/SIP environments
- Small mixer footprint for restricted tank head geometries
- Low headroom less than 430mm (17”), right-angle gear drive and low center of gravity; processing tanks can easily be moved from one location to another with the mixer in place
- All 300 Series stainless steel exterior finish available
- Supplied with Lightnin A310/A510 low-shear impeller
- Customers can tailor the most cost-effective mixer configuration based on specific process and environmental requirements
- Available with Lightnin’s Quality Assurance Documentation validation support package
- Comes with Lightnin’s 100% process guarantee
