Name: Micro Clean 3/4" Rotary Valve Assembly w 7/16" Stopper
Brand: Micro Clean
Availability: OutOfStock

Overview
Other Details
Reviews

Product Description

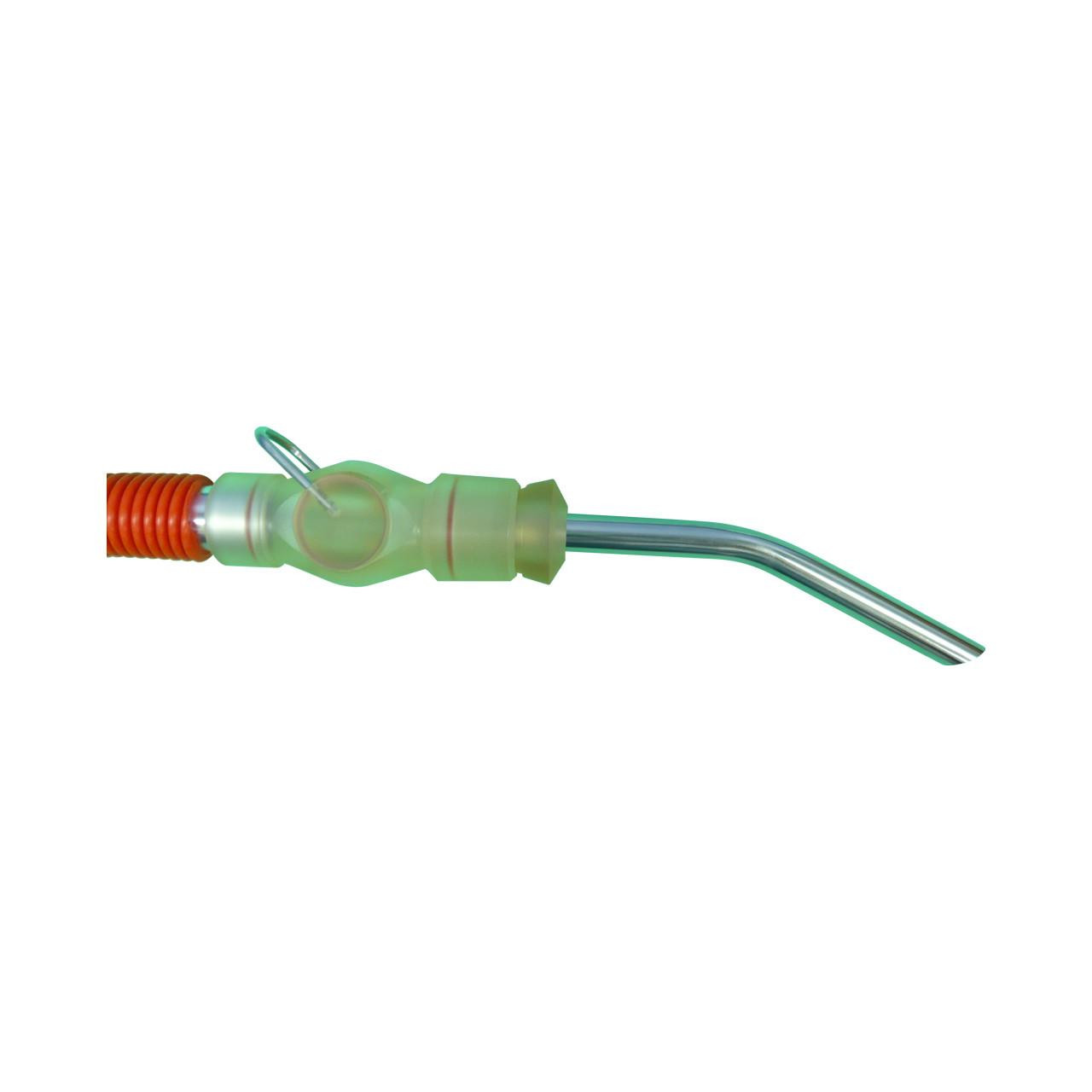

Micro Clean 3/4" Rotary Valve Assembly, includes 7/16" Valve Stopper

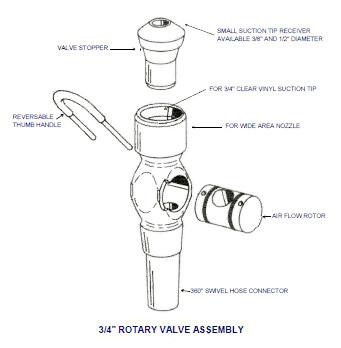

Micro Clean features an exclusive Rotary Valve design with a thumb regulated air flow control, that allows the user to control the amount of vacuum desired. The ergonomic swivel connection provides 360¡ rotation of the valve.

The Rotary Valve is complimented by a variety of cleaning accessories that bring versatility to the workstation including:

Valve stopper in two sizes to accommodate a choice of 3/8" or 1/2" diameter suction tips of various materials and lengths.
3/4" Clear Vinyl large diameter suction tip for when the stopper is removed
5 1/2" wide area nozzle that fits the tapered outside diameter of the valve body for larger area clean-up
Rotary valve mounting bracket
Rotary valve cleaning brush
Hose couplings and "Y" connectors
Job specific accessories are also available upon request.

Other Details

Standard 3/4"" Rotary Valve Performance Specifications

Note: Actual valve and kit performance results will vary based upon the individual central vacuum system characteristics, such as piping size, volume capacity, manifold pressure, prior restrictions, etc. Valves and accessories require proper installation with appropriate tubing, connectors, and inlet valve / hose adapters. Please contact Centennial Equipment Company Inc. for additional information and assistance.

Test Criteria: 3/4"" Rotary Valve
Vacuum Manifold Pressure: 3.5"" HG.
Tubing Size: 3/4"" Inside Diameter
Tubing Length: 10 feet
Measured Flow Rate at Valve: 18 scfm

Warranty

Micro Clean and Centennial Equipment Company Inc. warrants its products against defects in material or workmanship for one year from time of delivery. Micro Clean’s sole obligation under this warranty is to repair, or at its option, replace the defective product. The buyer shall have no other remedy. (All special incidental and coincidental damages are excluded.) Written notice of breach of warranty must be given to Micro Clean and Centennial Equipment Co., Inc. within the warranty period. The warranty does not cover damage resulting from improper installation or maintenance, accident or misuse. ALTHOUGH OUR TOOLS ARE USED IN CLEAN ROOM APPLICATIONS WORLDWIDE, WE MAKE NO CLAIMS CONCERNING ELECTRO STATIC BUILD UP, OR THE ELIMINATION OF SAID BUILD UP. OUR TOOLS HAVE NOT BEEN TESTED FOR ESD RESISTIVITY, WITH THE EXCEPTION OF OUR ESD HOSE. MICRO CLEAN / CENTENNIAL EQUIPMENT CO., INC. SHALL NOT BE HELD LIABLE FOR DAMAGE, DUE TO ELECTRO STATIC DISCHARGE. NO OTHER WARRANTIES AS TO MERCHANTABILITY OR OTHERWISE ARE MADE.
