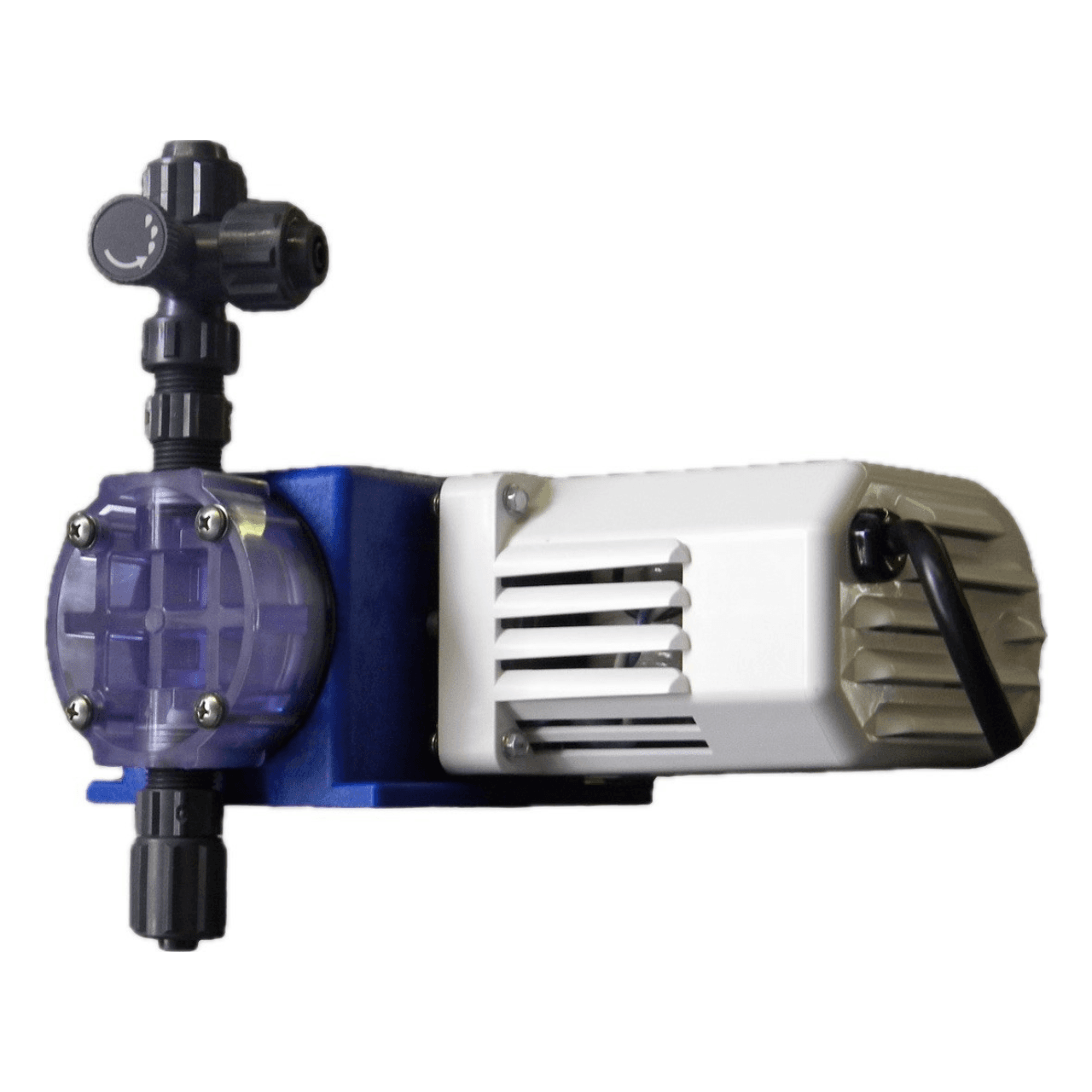

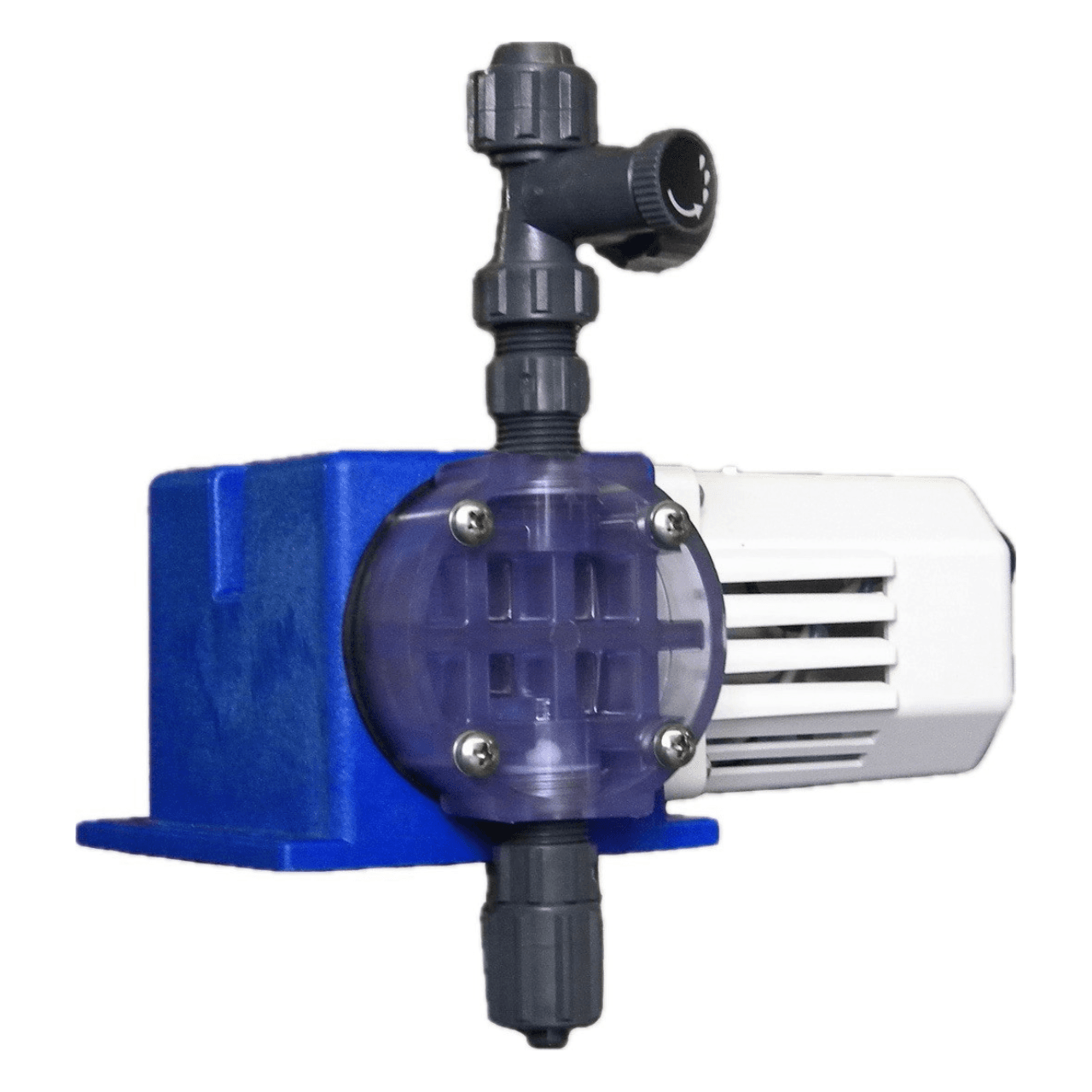

Pulsafeeder Chem-Tech Model X100-XC-AAAAXXX Diaphragm Metering Pump

Product Description

Pulsafeeder Chem-Tech Series 100 Mechanical Diaphragm Metering Pump - X100-XC-AAAAXXX

The Chem-Tech Series is the standard by which all other dosing pumps are judged, Chem-Tech Series 100/150 pumps with motorized-diaphragm technology deliver dependable performance and extended longevity. The Series 100/150 provides quiet, consistent metering over long periods of time in a compact form.

Series 100 Models – The preferred metering pump for water conditioning professionals around the world. Perfect for applications where economical, consistent performance is required. Capable of a wide range of flows, from less than 3 gpd (0.47 lph) up to 30 gpd (4.72 lph) and pressures up to 100 psi (7 bar).

Series 150 Models – Built upon the same solid platform as the 100 Models, these units are capable of higher flow rates. With a range offering up to 100 gpd(15.76 lph), the Series 150 can meet the demands of larger applications. Maximum pressure is 60 psi (4.2 bar).

Download Chem-Tech Series 100/150 Tech Sheet

Download Chem-Tech Series 100/150 IOM

Download Chem-Tech Brochure

About Chem-Tech Pumps

Pulsafeeders Chem-Tech Series Pumps includes a special elastomer diaphragm that is sealed against the reagent head forming a seal-less, leak free pumping chamber. The motor is connected to the diaphragm to create the pumping motion. As the diaphragm moves away from the face of the reagent head, it creates a vacuum which closes the discharge check valve and opens the suction check valve, drawing the pumped fluid into the pumping chamber. As the motor forces the diaphragm toward the face of the reagent head, the suction check valve closes and the discharge check valve opens allowing the liquid to flow out the discharge valve.elastomer diaphragm. This diaphragm is sealed against the reagent head forming a seal-less, leak free pumping chamber. The motor is connected to the diaphragm to create the pumping motion. As the diaphragm moves away from the face of the reagent head, it creates a vacuum which closes the discharge check valve and opens the suction check valve, drawing the pumped fluid into the pumping chamber. As the motor forces the diaphragm toward the face of the reagent head, the suction check valve closes and the discharge check valve opens allowing the liquid to flow out the discharge valve.

100/150 Series

• Feed rates from 3 to 100 gpd (0.47 to 15.76 lph) / Pressures up to 100 psi (7 bar)
• Bleed Valve Assembly: Aids in the priming and relieves pressure from the discharge line
• pH Adjustment Applications: Soda Ash, Caustic

Degassing Series

• Feed rates from 15 to 100 gpd (2.34 to 15.76 lph) / Pressures up to 100 psi (7 bar)
• Self priming
• Degass Head Assembly: Top mounted vent valve evacuates gas bubbles for return to the tank to eliminate vapor lock
• Disinfection Applications: Chlorine, Hydrogen Peroxide, Chemicals that tend to out gas
