Product Description

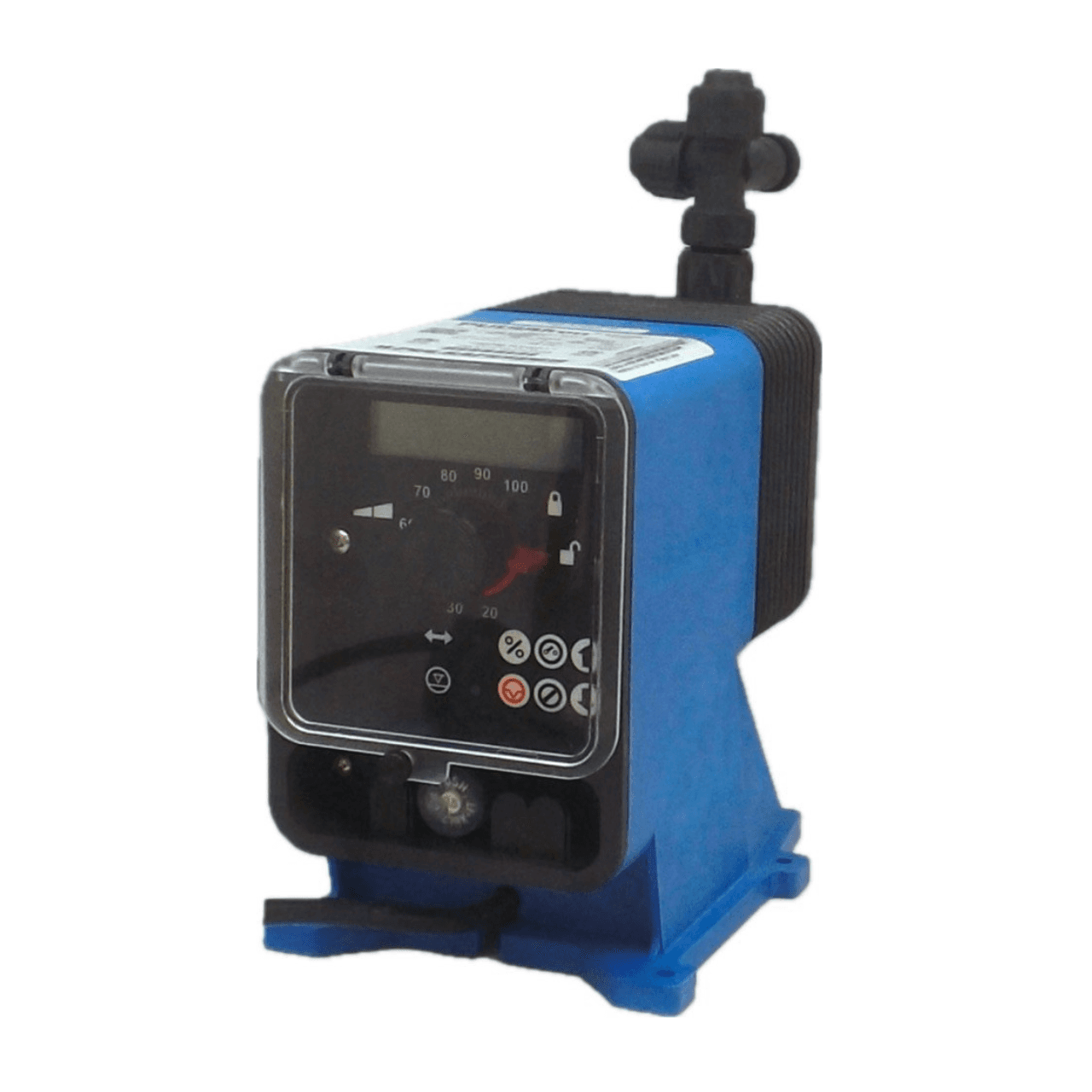

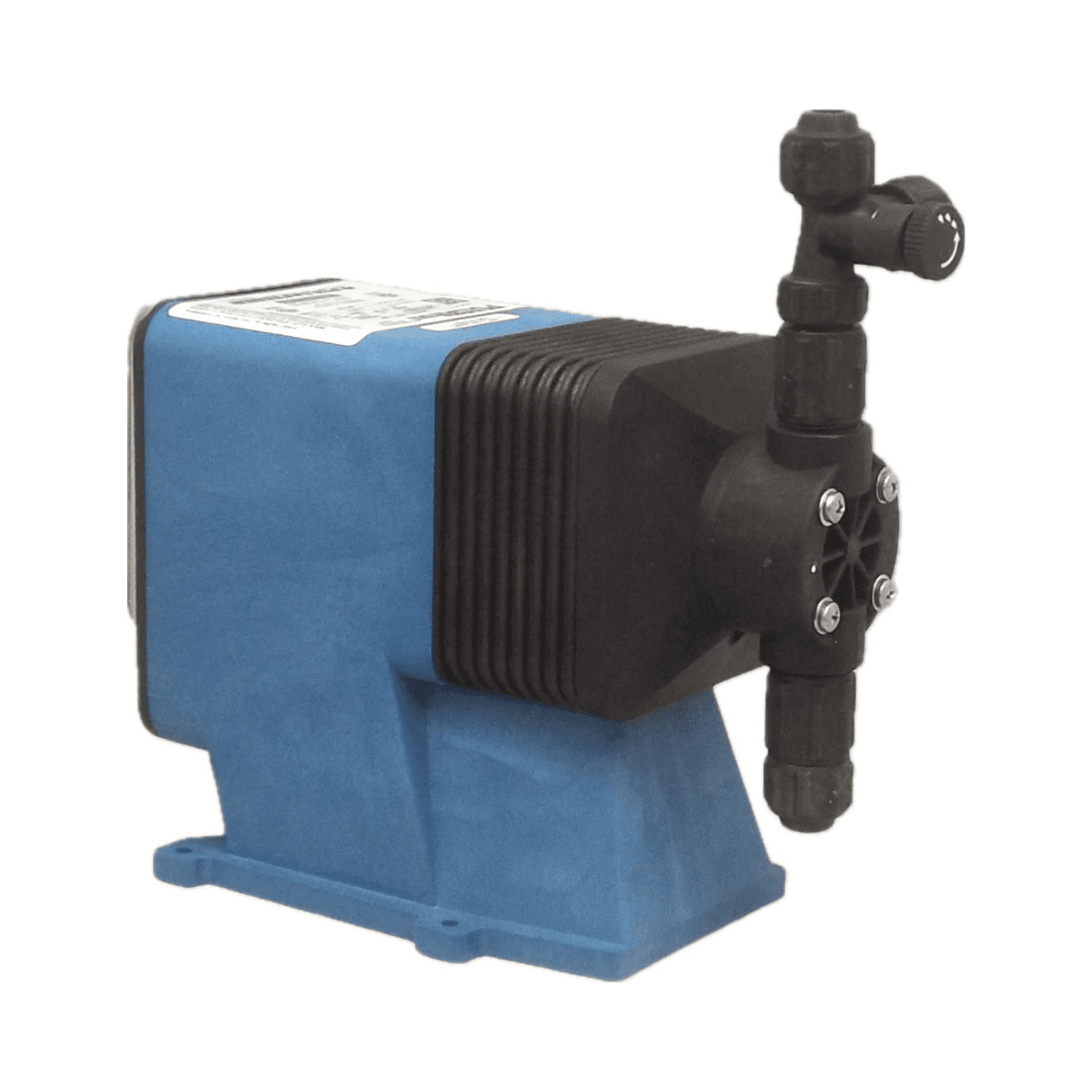

Pulsafeeder PULSAtron Series MP Model Diaphragm Metering Pump - LMH8TA-WTCB-XXX
The Pulsatron Series MP is a true microprocessor controlled instrument for precise and accurate metering control. Packed with standard features, the Series MP include automatic control via 4-20mA or 20-4 mA inputs, external pace with stop feature and 16 character LCD display with support for English, French, and German languages. The optional 4-20mA output signal provides a remote indication of pump speed, remotely confirm the pumpÂ’s speed is adjusting to your process parameters, and estimate chemical usage over time. Nineteen distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 504 gpd (79.5 lph) @ 20 psi (1.3 bar), with a turndown ratio of 1000:1, there is a Pulsatron MP Series pump to fit your process perfectly.
Manufacturer Part Number | LMH8TA-WTCB-XXX |
Max Flow Rate | 21.0 gph / 504 gpd (79.5 lph) |
Maximum Discharge Pressure | 20 PSI (1.3 BAR) |
Voltage | 115V |
Head Fittings | PVC |
Seats / O-Rings | PTFE |
Balls | CER |
Options | Standard |
Connection Size | .50" x .75" |
Controls | Signal Level |
NSF61 Approved | No |
KOPkit Part Number | K8WTCB |
Download PULSAtron Series MP Tech Sheet
Download PULSAtron Series MP IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
