Product Description

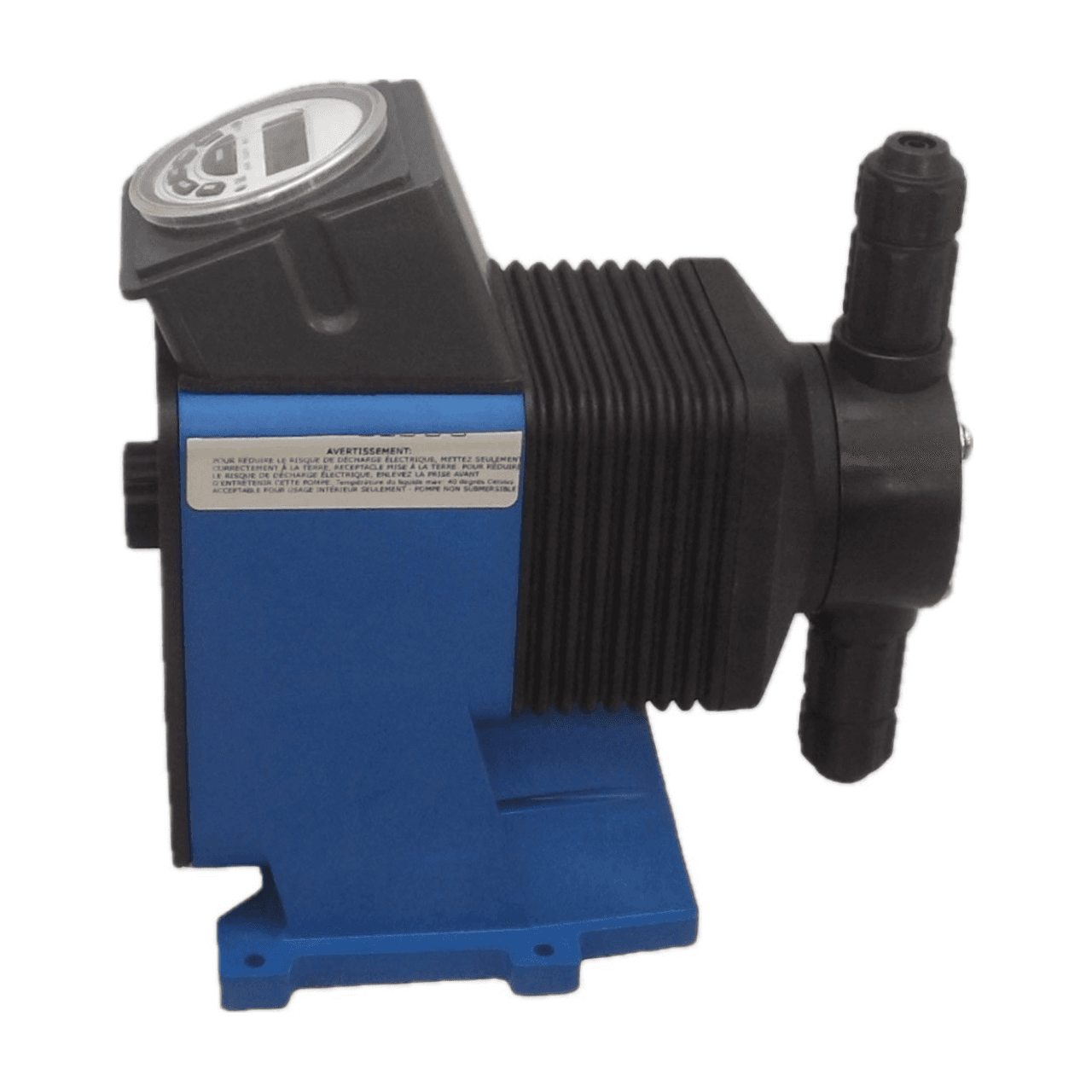

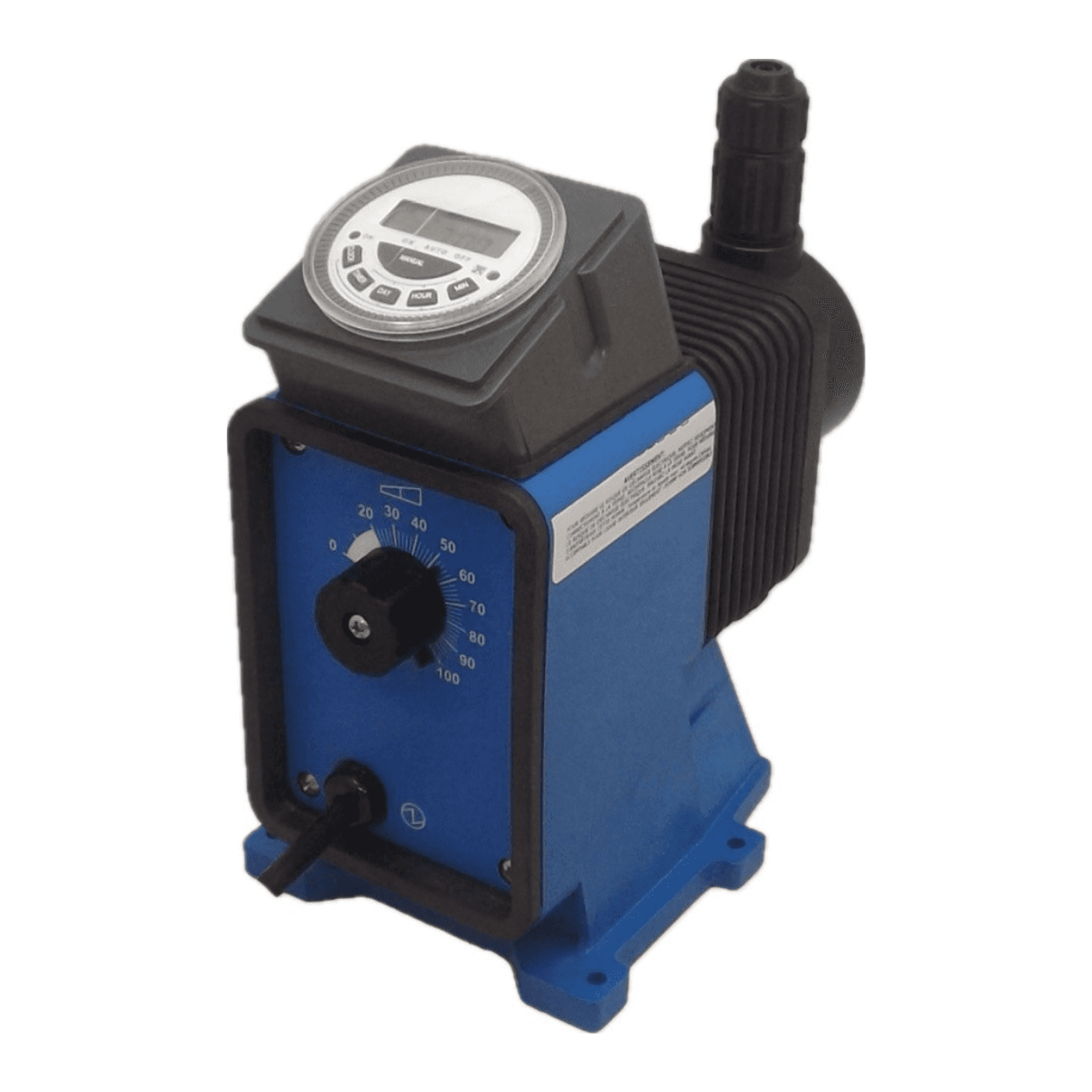

Pulsafeeder PULSAtron Series T7 Model Diaphragm Metering Pump - LC14BA-PTC1-XXX
The Pulsation Series T7 was designed to feed chemical products on a timed schedule. Typical applications include the feed of biocides in open-air cooling towers. The feed cycle is initiated and controlled by the programmable timer. The Series T7 provides everything you need in one unique, compact package to create a simple and cost effective metering system for timed applications. A 7-day programmable timer controls the Series T7. The timer is programmable in 1-minute increments with up to 8 on/off cycles per day. Each timed event can be set to run any day of the week on a 7-day cycle. Other control features include a standby mode, continuous ‘ON’ mode and the ability to adjust the stroke length from 0 to 100%. Four distinct models are available, having pressure capabilities to 100 psi (7.0 bar) and flow capabilities to 30 gpd (4.7 lph), with a turndown ratio of 10:1. Metering performance is reproducible to within ± 3% of maximum capacity.
Manufacturer Part Number | LC14BA-PTC1-XXX |
Max Flow Rate | 1.00 gph / 24 gpd (3.8 lph) |
Maximum Discharge Pressure | 100 PSI (7 BAR) |
Voltage | 115V |
Head Fittings | GFPPL |
Seats / O-Rings | PTFE |
Balls | CER |
Options | Standard |
Connection Size | .25" x .38" |
Controls | No Options |
NSF61 Approved | No |
KOPkit Part Number | K4PTC1 |
Download PULSAtron SeriesT7 Tech Sheet
Download PULSAtron Series T7 IOM
Download PULSAtron Parts Pages
About PULSAtron Pumps
PULSAtron’s industry leading diaphragm metering pump design features a guided check valve system with a “seat and ball” design to ensure reliable and accurate metering.
With their thermally protected solenoid, PULSAtron pumps are uniquely suited to meet flow and pressure specifications under hot conditions, and can also handle a variety of gaseous solutions.
- Flows from 6 GPD to 600 GPD
- Discharge Pressures up to 300 PSI
- Various Control types including 4-20mADC
Typical applications are acids, caustics, polymers, bleaches, pH control, solvents, dyes/ink, catalyst, cleaning agents, and much more.
