Product Description
Vertiflo Solids Handling Pumps
Vertiflo solids handling pumps provide self-priming centrifugal pumping for wastewater, raw sewage, sludge, slurries, trash and other liquids containing solids. The Vertiflo Series 2100 is available in three sizes and can handle solids up to three-inch-diameter spheres.
Designed for industrial, municipal, mining, pulp and paper, and meat-packing applications, the Series 2100 provides convenient access to the impeller and casing for debris removal and maintenance.
Vertiflo Solids Handling Pump Series

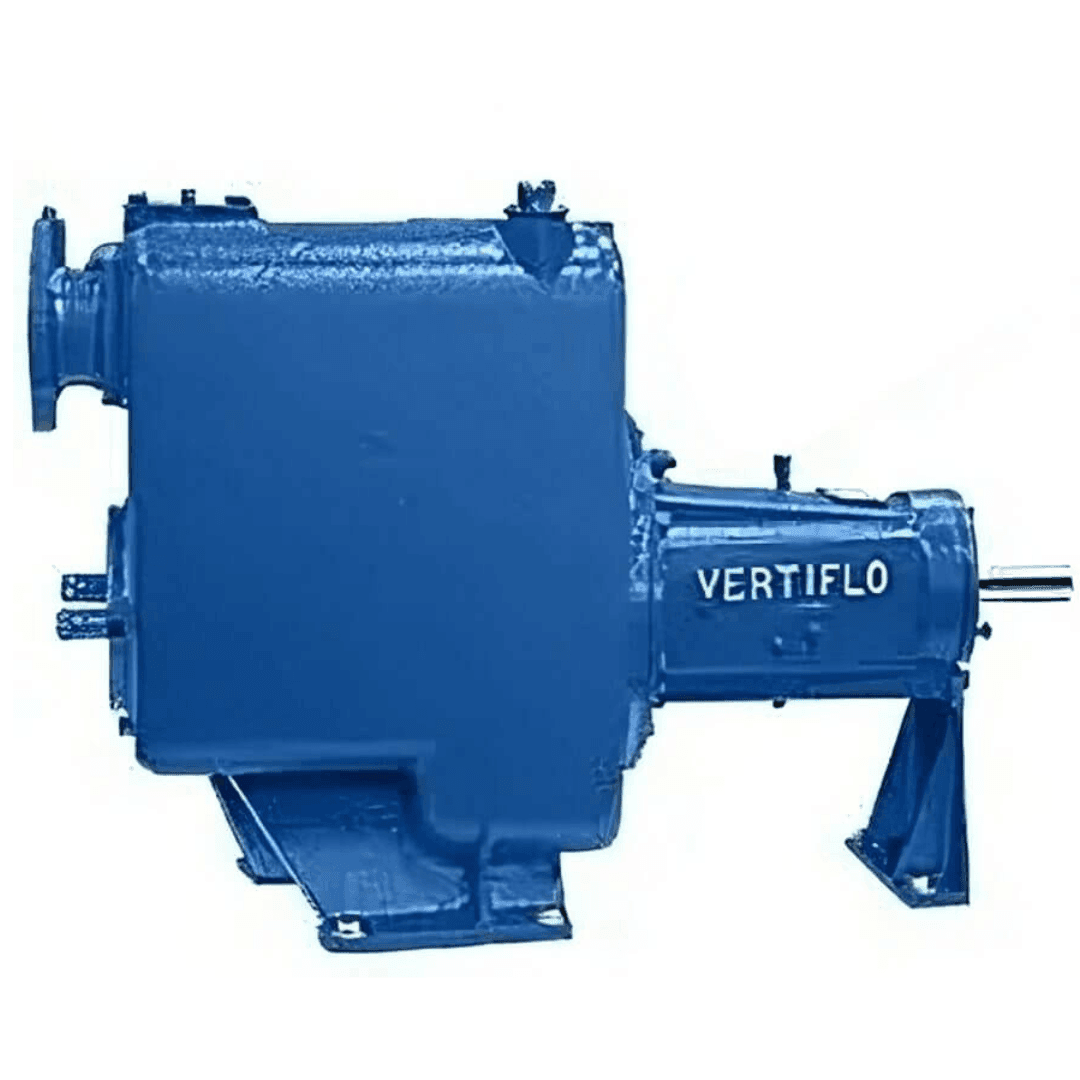

Series 2100 Self-Priming Solids Handling Pump
The Series 2100 is a self-priming centrifugal pump for raw sewage, sludge, slurries, trash, wastewater and liquids containing solids. It handles capacities up to 1,300 GPM, heads up to 112 feet TDH, solids up to three-inch-diameter spheres and suction lifts up to 25 feet.
Series 2100 Features
- Available in three-, four- and six-inch sizes
- Back pull-out construction
- External impeller adjustment
- Replaceable case wear plate
- Oversized tapered bore
- Self-flushing seal chamber
- Optional external flush
- Convenient impeller and casing access for debris removal
Common Applications
- Liquids containing entrained solids
- Raw sewage and sludge
- Slurries and trash
- Wastewater
- General industrial processing
- Pulp and paper
- Mining
- Meat packing
Construction Options
- Cast iron
- 316 stainless-steel fitted
- All 316 stainless steel
- CD4MCu fitted
- All CD4MCu
Select the Right Vertiflo Solids Handling Pump
Centennial Equipment can help evaluate liquid characteristics, solids size, flow, head, suction lift and construction-material requirements before selecting a Vertiflo Series 2100 pump.
